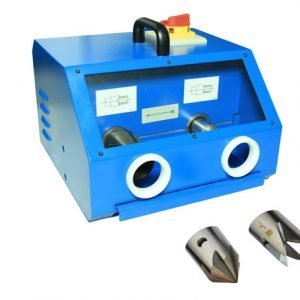

PB42 Benchtop Pipe/Tube Deburring machine Edge Deburring Machine
Deburring machine for piping and round material. The materials suitable for internal and external deburring and chamfering range from plastics to non-ferrous metals, structural steels, stainless steels and even titanium, almost without exception. High-quality cutting tools with a sprung support body to ensure a long service life for the HSS blade. chatter-free deburring in the shortest possible time
Chatter-free deburring
Sturdy and durable machine
Considerable safety design
Get A Free Quote Now

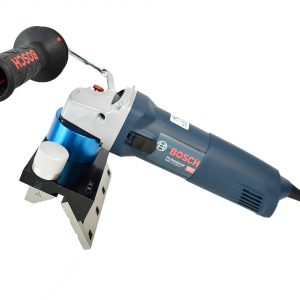

D100 Portable chamfering machine
Designed for chamfering and deburring of parts, internal and external radiuses and holes
Specially designed for producing visual bevel and welding preparation
Powerful electric drive for extreme loads
Chatter-free deburring
Reliable performance with BOSCH quality mainly body
Rotating ergonomic handle
Outstanding overload capacity fit for tough jobs
Get A Free Quote Now

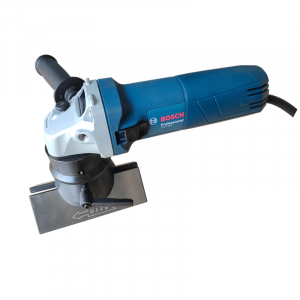

D120 Portable chamfering machine
Deburring machine for straight edge. The materials suitable for internal and external deburring and chamfering range from plastics to non-ferrous metals, structural steels, stainless steels and even titanium, almost without exception. High-quality cutting tools with a sprung support body to ensure a long service life for the HSS blade. chatter-free deburring in the shortest possible time
Reliable chamfering performance with BOSCH quality main body
Sturdy and durable machine
Compact and slim design for easy handling
Get A Free Quote Now
D140 Hand held portable chamfering machine
D140 is used for deburring and rounding off edges on workpieces made of steel, stainless steel, aluminum and other materials. It is suitable for processing straight edge 1-4mm chamfering. The compact construction and the low weight offer wonderful ergonomics. The chamfer size can be set precisely through a scale.
Optimised motor cooling – for high overload capability
High power of 1400watt
Used for straight edged and contours
Constant Electronic – keeps the speed constant, even under load
Get A Free Quote Now

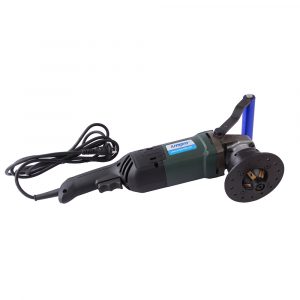

PB10 Portable electric beveling machine
D140 is used for deburring and rounding off edges on workpieces made of steel, stainless steel, aluminum and other materials. It is suitable for processing straight edge 1-4mm chamfering. The compact construction and the low weight offer wonderful ergonomics. The chamfer size can be set precisely through a scale.
Optimised motor cooling – for high overload capability
High power of 1400watt
Used for straight edged and contours
Constant Electronic – keeps the speed constant, even under load
Get A Free Quote Now

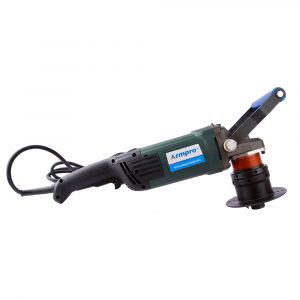

PB15 Portable electric beveling machine
The ASO 300 is used for deburring and rounding off edges on workpieces made of steel, stainless steel, aluminum and other materials. It is suitable for processing drill holes and openings starting with an internal diameter of 7.0 mm. The compact construction and the low weight offer wonderful ergonomics. The chamfer size can be set precisely through a scale.
One-handed operation
Compact and light (500g) construction
Used for straight edged and contours
Get A Free Quote Now
Hand held pneumatic chamfering machine for straight edged and contours
The ASO 300 is used for deburring and rounding off edges on workpieces made of steel, stainless steel, aluminum and other materials. It is suitable for processing drill holes and openings starting with an internal diameter of 7.0 mm. The compact construction and the low weight offer wonderful ergonomics. The chamfer size can be set precisely through a scale.
One-handed operation
Compact and light (500g) construction
Used for straight edged and contours
Get A Free Quote Now
Why Armpro is Trusted
Welcome to Visit Our Chamfering Machine Factory
Welcome customers from any country come to visit us, we can show you the Chamfering Machine workshop, and show the Chamfering Machine production site.
The Buyer's Guide
Chamfering Machine: The Complete FAQ Guide in 2021

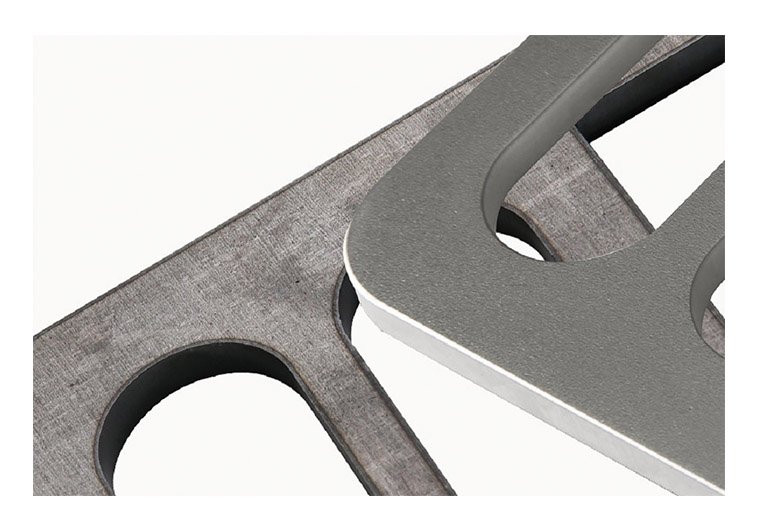

A chamfering machine cut the progress edge between two countenances on an item. Some of the time chamfering is characterized as a type of incline, and it is generally handled at a 45 degree point between two adjoining right-point faces.
Due to its many advantages, it is widely used in the industry. It can cut the right-angled edges of any edge pin bolts. Due to its practical capabilities and high productivity, it is being used in more factories and industries.
In this article, we will consider every aspect of this important product. By reading this you will be able to make a good decision for your purchasing.
1.What is Chamfering machine?
It is a piece of equipment used to provide a smooth transition between two surfaces. For the most part, the 45-degree position amongst two neighboring sides of a right angle where chamfering is performed. Chamfering is often utilized in the industry.
This machine is an electric instrument used in metal processing. In industrial terms, chamfering is a bevel. Processed at 45° between two neighboring right-angled surfaces.
In the chamfering process, the chamfering machine can cut bevels and remove burrs on any right-angled edges (such as the ends of holes, rods, bolts and pins).
The chamfering machine of superior quality with a 15°45° or 30°60° position series for picking. Appropriate for a variety of (end) milling cutters, router bits, and drill bits, among others.
Chamfering Machine
2.What are the advantages of the Chamfering machine?
The Economic Approach
The chamfer is suitable for medium- and high-volume production of work pieces with an outer diameter of up to 280 mm and module 5. It is capable of meeting the vast majority of currently known chamfer tolerances as well as those anticipated in the future.
As part of the gear design process, chamfers are specified, and chamfer hobs may be constructed in accordance with those definitions, regardless of whether comma or parallel chamfer shapes are sought, designs have either root chamfer or not.
In general, chamfer dimensions and positions are demanded in a range that is comparable to those of other chamfering methods, such as chamfer rolling.
Chamfers on both sides of the flanks are generated using specialized chamfer hobs composed of High-Speed Steel (HSS) and coated with AlCroNite Pro.
Chamfering Machine
3.What are the disadvantages of the Chamfering machine?
DISADVANTAGES
The chamfer gauge is equipped with a rotation counter indication. Due to the gauge's extended range, each count must be a rotation of the dial to get the final value on a dial chamfer gauge. Additionally, another drawback of the chamfer gauge is that owing to the variety of distances it can measure, it does not provide as exact a fit into the hole being measured.
A countersink gauge has the benefit of having a direct read 1 revolution gauge, which eliminates the need to count revolutions as with a chamfer gauge. Additionally, the countersink gauge offers a form and diameter measurement after each usage. Among the limitations of this sort of gauge is the inability to master it on a level surface.
Chamfering Machine
4.What are the Industrial applications of the Chamfering machine?
At the moment, when manufacturing huge curved steel piece goods in local iron and steel initiatives, relatively it is easy to produce flash edge, burr, and swelling head phenomena in the bar end, which are influenced by the sawing and cold bed collection processes, severely limiting the improvement of the product's surface quality.
All businesses that use metal components, including automotive, motorcycle, bicycle and kid vehicle parts as well as metal furniture and construction gates and openings are now benefiting from the use of chamfering machines, which are already being used in a wide range of industries.
The automatic chamfering machine uses PLC control and hydraulic execution systems to achieve mechanization and constant action. After cooling, the bar is placed on the chamfering machine feeding bench, and the bar automatically branches from the bench feeding, completing the chamfering at both ends, automatically collecting, going hand-in-hand, and automatically counting bundles. The finished product is then hustled and elevated in the entire work operation.
Chamfering Machine
Chamfering Machine
5.How many different parts chamfering machines have?

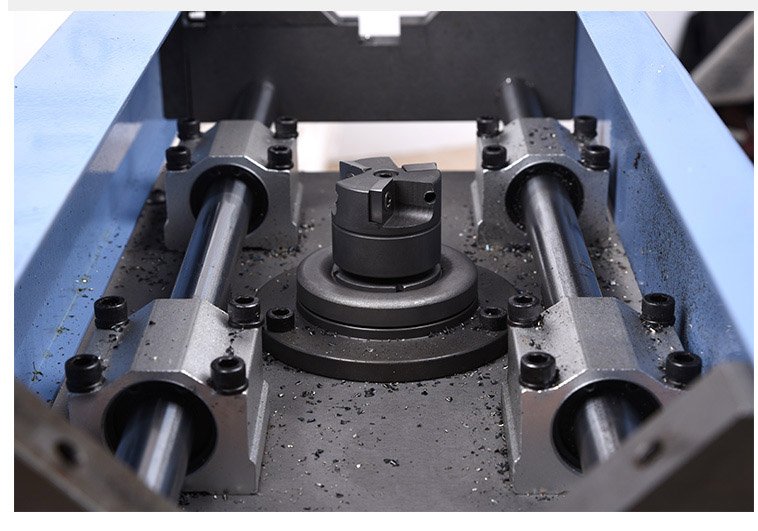

1. The motor
2.A pair of movable guides
3.Handle on the upper handle
4.Handle on the lower handle
5.Activating the on/off switch
6.Screws for adjusting the depth of chamfering
7.Adjustments to the chamfer angle may be made in seven places.
8.Spindle guard for insert holder
These are the primary components of a chamfering machine; when all of these components are combined, a chamfering machine is formed. Each component performs a unique purpose that is detailed in detail below.
Tungsten carbide inserts are used to cut (chamfer) angled sections and shrill curves of metal resources, either tiny objects or work surface edges.
Totally modifications need to be made with the machine switched off and the power line disconnected from the outlet.
Machine alterations
Before beginning chamfering operations, it is required to make the necessary modifications to the machine. To do this, take these steps:
- Change the chamfering angle and release the four alley screws that hold the guides in place.
- Tighten the screws again after rotating the guides and matching the orientation spot on the provision with the advanced rule on the device frame.
- To modify the chamfer depth, unscrew the two screws that secure the shaft component to the mechanism edge.
- Using an Allen key, expose the protection enthusiast underneath the knob.
- Rotate the knob on the machine's top section to line the orientation spot on the edge with the grouped scale placed near the screw. Then, re-tighten the screws and lock nut.
Chamfering Machine
Chamfering Machine
6.How does a Chamfering machine work?
While working, hold right hand and the motor switch handle in your left.
Handle may be rotated for the employees' convenience. The handle may be rotated 90 degrees left or right by pushing the grooved button. To alter the height of each worker's motor switch, unscrew the height, and tighten it again.
A two-step structure is used for safety reasons in the construction of the motor switch. As a result, the switch is now in the "continuous" position. You may turn off the motor. Before approaching the work piece, start the engine. The machine should be moved gently from the top and the work piece chamfered as it moves down.
Always chamfer left to right. Never move the machine backwards. Always chamfer from the work piece's edge. To start chamfering from the center, you must approach the machine cautiously to avoid damaging the insert points. Chamfering depth and angles affect chamfering speed. (variable chamfering) The chamfering speed should be adjusted to the chamfering amount. Don't over speed the machine. Replace insert tips if they are worn, dull, or damaged. Excessive usage may harm, reducing its lifespan.
Use only 20 degree inserts tips. To replace the insert tips, use a 3mm hexagonal T-handle wrench. Do not spin the screw with excessive force if you need to change the insert tips. Instead, remove the whole frame by first loosening the bolt, and then the jam nut. Insert tips may be removed by striking them with an impact driver after the cutter has been separated. To change the insert tips, the screws must be unscrewed.
The power cable must be disconnected when insert tips are replaced or repairs are made. Never use the machine if the locking bolt has been loosened or the frame has been detached.
When assembling the components of Lists Nos. 8, 9, and 10, use a 3mm hexagonal T-handle wrench, In order to ensure that the heads of the insert set screws are positioned below the top surface of the wedge when the inserts are entirely connected.
Chamfering Machine
7.Why usage of speed controller is important in Chamfering machine?
Speed Controller
1.Purpose of Speed Controller
For chamfering operations, the motor (manufactured in Germany, W24-230) has an unloaded RPM of 6,600 and a loaded RPM of 4,600 (actual RPMs may fluctuate according to the actual load). These RPMs are fine for chamfering typical steels. As a result, lowering the motor's RPM is advised in order to preserve the inserts.
What to do with it
a.Connect the machine to the Speed Controller by plugging it into an electrical outlet. The Speed should be adjusted to the Slowest setting for chamfering stainless steel.
b.According to the actual load, set the controller to 35-60%.
c.At advanced fractions, the swiftness is quicker but the insert wear rate is slower, while at lower percentages, the insert wear rate is slower but the chamfering speed is slower and may produce machine vibrations.
d.Higher tensile strength stainless steels have a greater wear rate of the inserts.
Chamfering Machine
Chamfering Machine
8.How to maintain a Chamfering machine?
MAINTENANCE
Electric Shock
Always switch off the equipment and disconnect the padding from the channel before doing any maintenance or inspections. The reason for this is to prevent electric shocks.
To ensure optimum operation and longevity, it is important to keep the equipment clean and well-maintained on a regular basis. When the device is involved in chamfering activities, use a compressor to remove the dust and residue that accumulates on the machine and its protective devices.
Cleaning the machine
Using detergents or solvents can harm the plastic parts, so avoid them. Maintaining a close eye on the inserts for signs of wear, such as cracks, defects, and/or detachable materials, and replacing them if necessary.
Regular Inspections
Every six months, conduct a thorough examination of the machine's operation and wear.
PERIODIC MAINTENANCE
Electric shock
Turn off the machine and unplug the power cord before replacing the insert. Because of this, there is a reduced hazard of an electronic jolt
Characteristics of the Wheel
Use only the wheels listed in the technical specifications table, which are the correct size and shape.
When installing sharpening wheels, no adapter may be used that has an inner diameter less or larger than that indicated in the qualifications tabletop. It is strictly prohibited to use any sort of adapter
Replacing the inserts is as follows:
Remove all four screws that secure the range of the provision guides
Chamfering Machine
Chamfering Machine
9.How do you troubleshoot a Chamfering machine?
TROUBLESHOOTING
The machine will not start.
- Verify that the power supply is working properly.
- To begin, use the remote control and insert the green notch.
- The equipment should be unplugged and contacted by Technical Support if the automated power supply interruption feature has been activated.
- As soon as you press the confirmation button, hold down your handle's activating switch.
Electrical malfunctions with the motor or other components
- Permit the instrument to calm down after extended usage.
- Speak with the Service Department
Chamfering is not uniform.
Adjust the machine to your specifications, giving careful attention to the spindle's inclination.
- Ensure that the support guidelines are properly installed.
- Ensure that the chamfer gravity is not disproportionate; high thrust force results in erratic feeding.
- Ensure that all inserts are properly attached and are free of wear and/or damage.
- Ensure that the chamfered substance is flat and that no sections are formed of several materials.
Weakening of the inserts can be seen
Replacing or rotating the staff as needed
Chamfering Machine
Chamfering Machine
10.What key factor you must keep in mind before buying Chamfering machine?
Many firms are using the utilization of the Chamfer Machine these days. It is a form of metalworking that involves moving in the center over an object that must be ground or ground into a smooth surface.
Chamfering is one of the most common metalworking techniques. When it comes to furniture design, tables, and other pieces of furniture. The term "chamfer" refers to a specific sort of metal boring.
A chamfering machine should be used for the kind of task for which it was designed. Always select a chamfer that is appropriate for the task at hand. The ideal machine for metal pipes is the one that is specifically designed for that purpose.
The finest plastic pipe chamfering tool is one that is specifically designed for plastic pipes. The chamfer should also be the proper size for your pipe.
Other kinds of chamfers may be found on the market, despite the fact that most people assume that these devices are exclusively used to make metal and plastic items. Automated and manual chamfering methods are among the options available on these machines. There is no need for a person to operate the chamfer. It's not uncommon for manual chamfering equipment to be manually operated.
There are several reasons why producers chamfer the material from which the object is produced. The primary reason for this is due to the scratchy material may cut through the material's edges, flatten them, and smooth them down.
Additionally, it sharpens the edges, reducing the likelihood important for chamfering. This is due to the fact that the product's boundaries are automatically smooth.
Chamfering Machine -
11.What doses usage of roller plate is considered vital Chamfering machine?

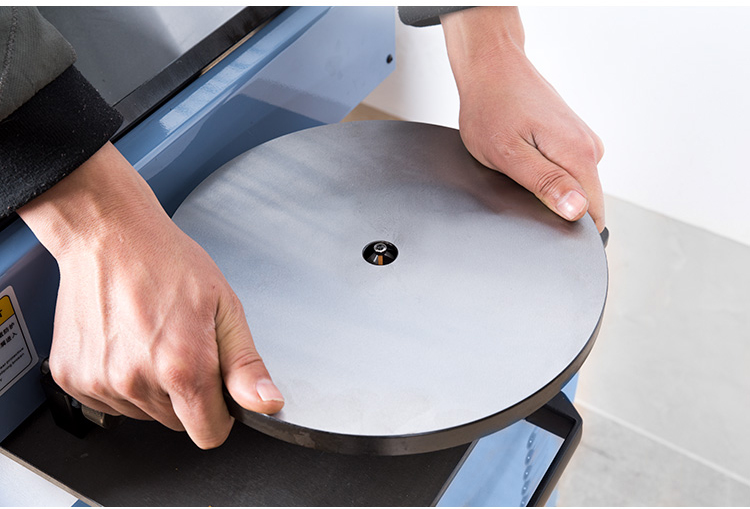

V Block plate which is big in shape must be attached to the work pieces for chamfering operations. Chamfering can't always be done on work pieces due of imperfections on their surfaces, such as pitting from rust and grime.
In these instances, work pieces and the V blocks have a large amount of friction, which makes it difficult to do chamfering operations. The Roller Plate, an optional accessory, makes chamfering work simpler and quicker by reducing friction.
Standard V-Block Plates and roller plates have distinct advantages and disadvantages The typical V-Block Plate has a total length of 224mm. When chamfering together of work pieces edges, the V-Block Plate must be touched by at least 112mm of the work pieces. For now, the whole distance of the Plate and the V-Block Plate must be in touch with at least 264mm of the work parts.
Additional features of the Roller Plate To produce consistent chamfering fallouts on each sides of work pieces, it is advised to add extension plates (about 140mm) on both sides of work pieces to support the Roller Plate, as depicted below. This will result in consistent chamfering results and improved workability.
Utilizing the Roller Plate's Supplementary 1t plate To complement the preceding two and three explanations, by using a 1t additional plate in conjunction on the plate, the effort on each sides of the work items may be significantly simplified. Because the height gap between the rollers on the Roller Plate and the work pieces is 1mm, adding a supplemental beginning and conclusion of the work improves the stability of the chamfering operations.
Chamfering Machine
12.In a Chamfering machine what is the characteristics of Chamfering Angle and Chamfering Depth?
Depth
Adjust the chamfering depth to the desired value by adjusting the adjustment handle in the higher position, keeping an eye on the gauge on the left edge of the mount.
1.25mm of chamfering depth may be achieved by turning the adjustment lever one full round. The chamfering depth varies by around 0.16mm for each of the eight clicks that make up a full rotation. The genuine chamfering pits of the surface will look like the following drawings, depending on the chamfering angles.
1.However, even if various angles have the same chamfering depths in place, their actual outcomes are varied.
2.The outcomes of the chamfering shown in the above drawings are based only on mathematical calculations, and may vary depending on the operating circumstances.
Angle
Loosen the four hexagonal cap screws on the End Cap that holds the V-block in place. Make sure to keep an eye on the left-hand side scale while you adjust the chamfering angle. After that, thoroughly tighten the four hexagonal cap screws. Measure the chamfering angle using a goniometer after a tiny test chamfering operation to ensure it is precise.
Chamfering Machine
Chamfering Machine
13.How can I improve the finish on a spot faced or chamfered surface?
The V Block's Big Plate must adhere to the work pieces while chamfering is being performed. However, poor surface smoothness, corrosion, and dirt may prevent chamfering from taking place if the work pieces' surfaces aren't sufficiently smooth. Because of the increased resistance amongst the surface plate or the work pieces,
hamfering Machine
