Your Best Magnetic Base Drill Machine Supplier

  • Powerful, Highest-quality

  • Annular Core Cutters

  • Largest Drilling/Cutting Capacity

Armpro Magnetic Base Drill Machine

Ampro Magnetic base drill machine adopts the principle of electric-magnet to absorb the rig frame and the swing drill mechanism onto the steel plate and then drill it. It's movable, characterized by hign efficiency, precision and convenient operation and safety, which is used on the occasion that electric hand drill and drill press are difficult to use. Compare with the fire drill, the magnetic drill is more of high precision, which belongs to physical cutting and will not produce the chemical reaction and material deformation. The magnetic base drill machine is widely used in all kinds of complicated environment of steel structure drilling, especially suitable to the shipping building, paper making, bridge construction, mechanical equipment installation, steel construct engineering, subway construciton, large equipment maintenance and all the pipeline engineering etc.



drilling machine slider 2
drilling machine slider

Armpro Magnetic Base Drill Machine

Hot Sale Variable Speed MG9012 Low Noise Magnetic Base Drill Machine

Armpro variable speed MG9012 magnetic base drill machine includes a, strong magnetic suction safe and reliable drilling. An adjustable stop blocks as well as a feed device for the drilling feeding are provided in this type drill machine, as well as a press-in punch for mounting the workpiece. The magnetic base drill can be used when you cannot use a drill press and electric hand drill to drill huge steel workpieces or in-field operation.

Customized items

High efficiency production

Wide application

Internal Self-lubricating Circulating MG9035 Automatic Magnetic Base Drill Machine

The Armpro magnetic base drill machine is a kind of electric tool for adhering and drilling on the horizontal level, side face, and top face, and widely used in the building, bridge building, and shipbuilding industries, and so on. The Armpro MG9035 magnetic base drill machine is equipped with a set of interchangeable multi-spindle drilling heads so as to improve the precision of the drilling depth.

Large products programming storage

Fast speed drilling capacity

Large drilling air pressure

High Demand MG9050 Strong Magnetic Suction Safe and Reliable Drill Machine

Armpro is a professional magnetic base drill machine supplier in the field of drilling machine. High demand MG9050 magnetic base drill machine is equipped with a set of interchangeable multi-spindle drilling heads and a set of interchangeable fences which can be interchangeably fixed to the magnetic drilling machine by means of quick-acting clamping attachments.

Humanized design frame

Universal head

Depth positioning

Hydraulic Control Structure of Power Head MG9116 Magnetic Base Drill Machine

Armpro MG9116 magnetic base drill machine adopts hydraulic control structure of power heads, which are convenient and small, reducing the workforce and improving the frilling precision and efficiency. And this type of magnetic base drill machine can be applied in diamond core drilling machine and wall cutter as well. Armpro provides professional manufacturing magnetic base drill machine to customers all over the world.

High efficiency production

Convenient and easy operation

Fast speed drilling capacity

Leading Industrial Portable Magnetic Base Drill Machine MG9223 Cheap Factory Price

Armpro MG9223 industrial portable magnetic base drill machine has the superiority of high quality steel, high frequency hardening, and good rigidity. The height of the worktable can be adjusted and rotated, the application of the flexible adjustment is good for saving time and effort. Armpro magnetic base drill machine is designed and manufactured independently by the engineering team, which is welcomed by lots of customers.

High efficiency production

High efficiency production

Portable and flexible weight

Customized production MG9228 Magnetic Base Drill Machine Super strength drill chuck

Armpro MG9228 magnetic base drill machine is equipped with internal self-lubricating circulating system, ensuring the smooth drilling process and protecting the magnetic base drill machine as well. By applying multi-functional magnetic base drill hollow drill, new magnesium alloy die-casting frame, super power light weight, Armpro MG9228 magnetic base drill machine is suitable for heavy-duty drilling.
High rigid construction

Screen protector cover

Fast speed drilling capacity

Automatic Inner Cooling System Cheap Factory Price MG9438 Magnetic Base Drill Machine

Armpro MG9438 magnetic base drill machine is a more efficient way to drill a hole through steel and other metalworking materials. This light weight, portable MG9438 magnetic base drill machine is held in place by a strong magnetic base plate, so is capable of cutting very accurate holes into steel plate and castings. For boring, clean and accurate holes these broachers are ideal for industrial use.

Universal head

Large working area

Wide application

Adjustable speed MG9445 Magnetic Base Drill Machine Hot Selling Machine

Armpro MG9445 magnetic base drill machine uses high quality cast iron, aging treatment, stable and strong magnetic base, durable drill chucks, providing customized production to the customers.

Armpro MG9445 magnetic base drill machine has the advantage of gear speed regulation, step less speed regulation. And the application of oil-immersed gearbox, the MG9445 magnetic base drill machine can provide a longer service life.

Large products programming storage

Customized items

Depth positioning

Powerful Industrial MG9445B Magnetic Base Drill Machine Double protection

Armpro MG9445B magnetic base drill machine adopts automatic inner cooling system, safe rope hole, double protection and hydraulic control structure of power head. And the open handle is more comfortable to grip ,which has a high precision dial for more precise drilling. All copper motor of the magnetic base drill machine has quite good heat dissipation and strong power.

Easy operation and extended durability

Different sizes and replaceable worktables

Large drilling air pressure

Drilling Machine Videos

Why Armpro is Trusted

Wide Selection

Armpro offers a wide selection of products catering to different applications.

24/7 Online Customer Support

Armpro Sales and Tech team are available for the pre-sale consultation, after-sales service, on 24/7.

Ergonomic Designed Machinery

All machinery are crafted with weight and balance that match their output for a more comfortable utilization.

High Quality Control System

Before delivery, all the machines needed to be checked and inspected fully for 48 hours.

Exceptional Engineering

With outstanding engineers and advanced technology, Armpro creates more high-quality &effective machines.

Warranty Coverage

Armpro offers 2 years warranty for all metalworking machines that customers can be guaranteed a complete after-sale serviced.

Welcome to Visist Our Magnetic Base Drill Machine Factory

Welcome customers from any country come to visit us, we can show you the Magnetic Base Drill Machine workshop, and show the

Magnetic Base Drill Machine production site.

Armpro factory
Armpro factory
Armpro factory
Armpro factory
Armpro factory
Armpro factory
Armpro factory
Armpro factory
Armpro factory

The Buyer's Guide

Magnetic Base Drill Machine:The Ultimate Buying Guide in 2021

Making accurate holes in different metal elements with a highly precise machine is such a difficult task to achieve but magnetic base drill machine is a flawless work piece for you.

In a professional world working with metal products is very hard but magnetic base drill machine use hard core cutters with strong rigid drilling tube for making sure that your production remain error free.

There are many drilling machines that are used for different purposes and magnetic base drill machine is one of them with most productive rate and greater efficiency in precision & accuracy. In this guide I will be going through all the important points about the magnetic base drill machine.

    Add a header to begin generating the table of contents

    1.What is Magnetic Base Drill Machine?

    Magnetic Drill Machine

    Magnetic Drill Machine

    A magnetic base drilling machine is a very powerful equipment to cut different kinds of rigid surface metal items and other things as well like stainless steel, iron, and Titanium etc. The basic and most effective purpose of a drill is to drill through different surfaces of metal.

    A powerful motor is installed in this drilling machine that can provide enough power to the drill for making holes and cut through the hard surfaces easily. Magnetic base drill machine is developed with the latest technology which makes it light in weight and easy to carry away.

    There are multiple types of works that you can perform on metal elements using the magnetic base drill machine like cutting, drilling, and for manufacturing purpose to give a shape to the steel based surface.

    2.How many types of Magnetic Base Drill Machines are available in the market?

    Magnetic Drilling Machine

    Magnetic Drilling Machine

    Magnetic base drill machines are defined according to their shape and structure that how these machines work differently on the basis of their working principle. There are many sorts of magnetic base drill machines that are present in the market on the basis of their linkup parts.

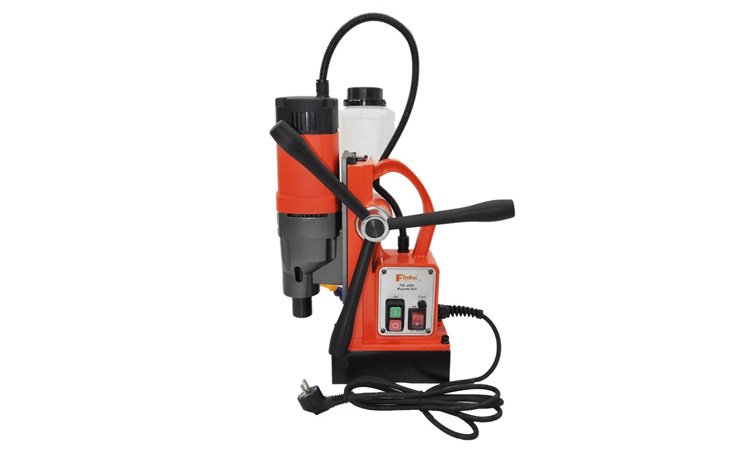

    Portable Magnetic Base Drill Machine

    It is easy to carry a powerful tool with you if you are going to work somewhere an electricity supply is hard to reach and you can not take a full duty magnetic base drill machine with you so in those types of situations a lightweight portable drill machine will be very efficient to make your work easy.

    Some places like working on a the top of a tower or on a bridge where you need to drill some holes to adjust the devices on it according to your requirement in that type of work portable magnetic base drill machine is a perfect setup for you. These drill machines probably have batteries installed inside them which provide the power.

    Automatic Magnetic Base Drill Machine

    Automation level in a magnetic base drill machine is also one of the important factor which defines the working speed of a machine because working with a fully automatic drill machine will definitely saves your time and it will be easy for you cope with multiple tasks in less time frame.

    Greater the automation level greater will be the work rate and you will require less energy to handle the drilling process because most of the working functions will be controlled by the machine automatically like the depth of a drilling hole will be measured and drilled accordingly by the machine this is one of the efficient way of getting accurate holes.

    Semi-Auto Magnetic Base Drill Machine

    In this magnetic based drill machine some of the work pieces are done automatically whereas some parts of the machine work manually because this machine does not act like a fully automatic machine.

    A feeding unit at the start is handled according to the type of metal element and you can adjust the manual feeding rate of the machine because most of the work rate is controlled automatically by the machine like drilling speed and depth of holes etc.

    Pneumatic Magnetic Base Drill Machine

    In this drilling machine electromagnet is not used because the main purpose of this drill is to work very carefully if there is a chance of fire because it is very often that some specific element catch fire when you work on high speed drilling with some sensitive metal elements that is why a permanent type of magnet is installed in this machine.

    Most of these pneumatic drilling machines are used when you need to handle the drilling process without getting any fire because most of this happens because of electrical issues. A core pneumatic medium is used in this machine for sensitive drilling.

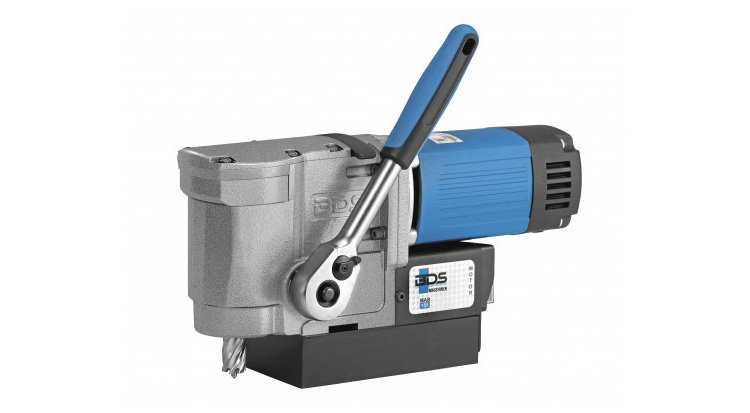

    Horizontal Magnetic Base Drill Machine

    Horizontal Compact Size Magnetic Drilling Machine

    Horizontal Compact Size Magnetic Drilling Machine

    This type of magnetic based drill machine is used for large surface metal items because handling these metals will be hard to handle when you work with other drill machines. Basically, angular gearing system is stored in this machine to make the process of drilling easy and comfortable for you.

    There are some situations like confined drilling where you may require to work with horizontal drilling machine because this machine is specially designed for these kinds of drilling purposes.

    You can avail any of these machines according to your work plan and all of these machines can act and perform the drilling process as per the requirements demand.

    3.Explain different applications of Magnetic Base Drill machine?

    Automatic Magnetic Drill Machine

    Automatic Magnetic Drill Machine

    The validity of magnetic base drill machine is applicable in different fields and it is one of the most often used equipment for working with metal items for multiple purposes like cutting, and drilling etc.

    Construction of Bridges

    Making a bridge of metal is very hard for the engineers especially when they have to work with drilling on metal items like metal rods long length metal layers and cutting of these elements is also one of the major parts during the construction.

    Portable magnetic base drill machine is probably the most used machine in this type of construction work because it is hard to pick and place the big size magnetic drill. To overcome constant drilling mechanism using a magnetic drill machine will decrease the risk of your product getting wasted during the drilling.

    Metal Towers Construction

    Drilling in metal rods for tower Construction

    Drilling in metal rods for tower Construction

    Different metal based towers that we often see in our daily life are all constructed with the help of magnetic base drill machine because to fit the nuts and screws between different parts of the tower will be hard without making screw holes and these holes are accurately done with the help of magnetic base drill machine.

    Railway Lines Construction

    Railway tracks that are made up of iron are constructed with some help of magnetic base drill machine. Making those tracks first and then drilling holes in those lines at that point drill machine is used because you need accuracy in drilling holes.

    There are some other tasks on which this machine does not play any part but some specific kinds of operation in the construction of different railway parts and tracks.

    Boiler Construction

    Different size of boilers are constructed according to the requirements of users and construction of these boilers is done by using different drilling and cutting machines.

    In the construction of boilers there are two side multi core drilling needed and most of the engineers use some other drilling machines as well along with magnetic base drill machine because when you want accuracy and precision in drilling holes magnetic drill machine is a flawless solution.

    Automobile Industry

    Magnetic Machine use in Automobile

    Magnetic Machine use in Automobile

    In the modern world automobile industry plays an important role to boost the economy of a country and different sorts of drilling machines are very commonly used in this industry for working with spare parts of vehicles and also for repairing purpose.

    Making and repairing of vehicle parts is done usually with different kinds of tools like magnetic drilling machine. This machine assists others to easily grind and cut through different metal parts precisely without any resisting force.

    In drilling process you get the versatility of drilling holes in any direction like horizontal, vertical or may be inclined direction because you can easily hold and operate the machine.

    So, as I have explained earlier most of the use of magnetic drill machine is to perform different tasks on metal products like drilling, cutting and surface phrasing is performed with this machine.

    4.What are the advantages of Magnetic Base Drill machine over other Drill machines?

    Semi-Automatic Magnetic Drilling Machine

    Semi-Automatic Magnetic Drilling Machine

    Every machine works differently and eases your work according to the type of process that you are going through. So the magnetic base drill machine also provides you ease while encountering with different metal items.

    Here are some of the advantages that you can get by using magnetic base drill machine.

    • Making drills into thick materials will be very hard if you use other drilling machine but if you use magnetic base drill machine you can make holes up to 70mm on a very thick metal.
    • It will take very less effort to work with magnetic drill machine because the machine is constructed under the latest technology services.
    • It will be easy for you to make hole in large metal elements because machine will assist you in handling those items.
    • When you work with a single piece of elements to drill multiple holes at the same time then magnetic base drill machine will help you do that task without further moving the metal work piece.
    • The structure of the machine is developed to easily handle every type of vibration which normally happens during the drilling process.
    • There will be no resisting force that can cause trouble on to your final product because the base of magnetic based drill machine is refined with one of the finest iron.
    • Making holes of different depths and sizes will be easy for you when you work with magnetic base drill machine.
    • Magnetic drill machine is not just limited to drilling holes there are some other operations as well that you can perform with this machine like tapping, drilling, spot fixing, boring and multi mores.
    • You can not get precise and accurate drilled holes while working with other drilling machine however, magnetic base drill machine is a highly recommended solution for you if you are looking to get accurate depth and radical size holes on a metal.
    • Handling heavy weight pieces must be very hard when you work with any kind of drilling machine but a fully automatic magnetic base drill machine will ease your work just by using the arm of the machine for lifting the large size elements.

    So, basically magnetic base drill machine is such a beneficial equipment for you to work with different sorts metals and other elements as well rather you are looking to make holes or want to use it for other purpose like tapping etc.

    5.What are the disadvantages of using Magnetic Base Drill machine?

    Some problems or causes may occur when you are working with magnetic base drill machine and they will act like resisting force to disturb the working procedure of the machine.

    • Sometimes, the drill base of the machine get damaged if you start working with hard rigid metal items without setting a proper pressure for drilling then it will cause rough holes drilling which will affect the holes size and width.
    • Most probably some people find it hard to set back and work patiently so they put some extra pressure along with extra speed on the drill which will break the drill because of so much extensive work frame at a single time.
    • Most of the disadvantages in the magnetic base drill machine are happen about the precision and accuracy problem and these problems occur because of human errors or sometimes the control shift of the machine does not cope with the metal type.

    You can say these are not the disadvantages but these are some minor problems which occurs because of some human error so, working efficiently and effectively with the machine is very hard task to do but at the end you will get flawless product if you work according to the manual guide.

    6.What are the different components of the Magnetic Base Drill Machine?

    Magnetic Drill Machine Parts

    Magnetic Drill Machine Parts

    Every drilling machine has almost same type of working parts but there are some major parts that lies according to the type of machine and its working principle.

    So, here are some of the main and basic working parts of the magnetic base drill machine.

    Base or Bed

    This part in the magnetic base drill machine works in the same way as it works in other drilling machine to give stability and ease in working to the worker while encountering with multiple type of elements.

    Most of this part in the machine is designed and developed according to the size of the machine because handling a large size drilling machine will require large size base to cope the machine and other parts as well.

    Holding Pillar or Column

    A pillar in a magnetic base drill machine usually connects the working components of the machine with the base to provide stability. You will see a large size pillar having an electric motor installed on its one side and drill base on the other side.

    All the basic parts of the machine are connected with the pillar so that you can easily perform any kind of work with the machine without the need of any special equipment to hold the machine at its place. So, it works as a depth provider to your magnetic base drill machine.

    Electric Motor

    Magnetic Base drill Machine

    Magnetic Base drill Machine

    An electric servo motor which mainly installed for the purpose of delivering power into the drill box to perform multiple operations of work pieces. Some of the drilling machines have power motors installed on top of their drill box for instance power delivering ability but in the magnetic base drill machine an electric motor is present on the other side of a pillar.

    The basic and general purpose of an electric power motor is to convert electric current into mechanical and then deliver it to the different parts of machine for drilling purpose.

    Drilling Head

    Usually, it is a large size box which is present on the top of the spindle which holds the different drilling rods. A drill head contains all sorts of small and large gears that works to rotate the drill rode by creating a rotational mechanism.

    A connection between drill head and electric motor is done through the help of a pulley because it is hard to use another horizontal pillar to connect the drill head with another drill head for that purpose all the wiring system is done through pulley system.

    Drill Jig

    A drill jig is used as a screw driver to make holes into the surface of metal items and this is done by creating a rotational mechanism coming from the drill box with the help of spindle and gear box.

    You can easily remove and replace another drill jig according to the type of holes that you want by using a magnetic base drill machine.

    Spindle or Holding Arm

    Holding Arm of Magnetic Base Drill Machine

    Holding Arm of Magnetic Base Drill Machine

    A spindle or a holding arm is one of the main components in the drilling machine because every type of holding mechanism of different drill jigs and key holes is done with this component of the machine.

    This part of the machine is usually lies below the drill head and below it there are some minor parts of the magnetic base drill machine like key hole to hold the drill jig and drill jig.

    Metal Holding Table

    A holding table is not just able to hold metal items but you can hold other elements as well on this table. By fixing the table position according to the type of drilling you can easily set up any type of material on that table for your ease in working.

    This table is not fixed at the same spot you can adjust the table according to the type of an element like how big the work piece is and how much pressure you are going to apply on that work piece for making drills.

    There is a rack and pinion mechanism present on the other side of the pillar to adjust the height of the table by moving the handle of the rack in clockwise or anti-clockwise direction you can fix the table comfortably.

    Arm System

    Long Drilling Machine

    Long Drilling Machine

    An arm system on top of the machine provides width to the magnetic base drill machine to easily adjust the drilling mechanism according to the type of element. For example if you are working with a large size metal item it will be hard for you fix that work piece on the table but with the help of arm system you can move the drill head far away as can out stretched to easily make the drill holes on that specific piece or work.

    Generally, this system is almost available in every type of machine because working with large size materials is very hard so for this purpose a long arm system provides flexibility to the worker to easily handle the situation.

    Chuck

    A chuck is usually installed on the lower side of the spindle which holds the drill jig and also helps to control the rotational movement of the jigs coming from the drill head.

    A keyhole is also available in the chuck system for easily changing the drill jigs because most probably drill jigs are installed according to the requirements of drilling holes.

    Pneumatic Magnetic Drill

    This is the unique part in the magnetic base drill machine which makes the difference between magnetic drill and other drills it helps to precise the holes. Other drill machines use electromagnetic drill for making holes or for other purpose which is not that vital to work with accurate drilling.

    Pneumatic core is used along with a magnet based drill to make the drilling accurate and efficient in every way so that no outcome can harm the metal element.

    7.How does the Magnetic Base Drill machine work?

    Magnetic Drilling and Tapping Machine

    Magnetic Drilling and Tapping Machine

    There are different operations that you can perform using the magnetic base drill machine but the most usual and common one is called core drilling or simple drilling.

    In this process the circular rotation of the drill head is maintained in a proper way to accurately and precisely make the holes of different characteristics into different metal items.

    Step-1

    In the startup the electric motor when starts by getting electric current or in portable drill machines there is no electricity motor the simple servo motor is used to utilize the energy coming from a battery.

    When the machine start coming into its rhythm you need to just check all the working parts of the machine to confirm that these parts are working properly.

    Step-2

    At the second stage of the drilling the work piece is settled on the table for starting the drilling process. All the edges of the element are checked properly and after that the fitting on the table is done according to the size of the work piece.

    If the work piece is larger in size you can simply move the table to handle the movement of the drill head because large size work piece will be hard to move around for drilling purpose.

    Step-3

    When everything in set then you are ready to do the drilling after making sure that work piece is at the right moment start the drilling process by adjusting the depth and size of the holes on the control panel.

    Make sure to set the depth and size of the screw holes according to the type of product because less rigid items require less pressure from the drill head for drilling holes. Also, adjust the rotational speed from the panel to easily handle the situation.

    Step-4

    After starting the drilling process if you want to work with the same element make then magnetic base drill machine will provide you ease in working with the same element for drilling multiple holes without moving the element in any further direction.

    Step-5

    When the drilling is done gently remove the work piece from the machine or some automatic magnetic base drill machines remove the work pieces by their own and then become ready for the other one.

    That is how the magnetic base drill machine works according to its functionality level and working ability.

    8.What is difference between Magnetic base drill machine & Hammer base drill machine?

    Magnetic Base Drill Machine

    This drilling machine is somehow differs from the other drilling machines because it works through the magnet base. In magnetic base drill machine the working of drilling holes is done with the help of core drilling.

    Because core drilling is an easy process to make sure that you are getting every kind of precision regarding your production. In the magnetic base drill machine you can utilize the drill head for working with steel surfacing and drilling purpose as well.

    Other drilling machines are used for randomly making holes without the precision in drilling and other works sometimes, the product get torn away because of high drilling speed and greater rigidity on the surface.

    It is also used for different sorts of construction work like phrasing the metal element of working to repair the steel sheet for making it useful for different sorts of work procedures.

    Hammer Drill Machine

    Portable Hammer Drill Machine

    Portable Hammer Drill Machine

    This drill machine works the same way as the other drilling machine but the only difference that this machine possessed is that along with the rotational movement of making holes on rigid hard surfaces this machine has a unique technique of making a hammer based force onto the work piece along with rotational movement.

    It often works through a spindle which helps to control the rotational movement as well as the hammering movement of the drill jig. In this way the drilling process become more authentic and easy. A hammer based movement help the drill jigs to make a way easily through the different parts of the work piece.

    These drill machines often came in a portable size to deliver some extra help to the drill for making holes and the function of hammering can be turned off easily if you want to operate only the drilling then you handle and work with that by switching off the hammer system.

    Hammer drilling machine is not just limited for metal elements this probably used to drill holes into the concrete walls and surfaces where other drilling machines fail to work that is where the hammer drill work perfectly.

    9.How to choose the best Magnetic base drill machine?

    Magnetic Core Drill Machine

    Magnetic Core Drill Machine

    The selection of a magnetic base drill machine depend upon some following factors that you must nee d to know before having this machine.

    Type of Work Piece

    Lots of different kinds of drilling machines are available in the market and they are specifically used for specific type of work pieces so select the machine by reading its specifications like some of the magnetic base drill machines work with only the metal based elements.

    The rigidity level of the work piece also defines the selection of the machine that you are going to made because it is not an easy process to drill though a hard metal item without using further equipment.

    Automation & Functionality

    Automation level in the drill machine depends upon the type of the magnetic base drill machine you are selecting and having a fully automatic magnetic base drill machine will help you in many things not only just saving your time.

    The functionality of the drilling machine also needs to be seen thoroughly because sometimes you buy a machine but it does not perform the specific type of function which you are looking for like a magnetic drill machine is well known because of precision and accuracy so you need to check that functionality level in the machine.

    Size & Appearance

    Always make sure the selection of your machine depends upon the empty space or area where you want to setup the machine because it will be hard for you to adjust the large size machine in a small space area.

    The weight of the machine and size decides the appearance up to somehow because some of the machines appear small in size but they are hard to carry away. The average weight of a magnetic base drill machine lies between 20-30 kg.

    Speed & Accuracy

    High Speed Magnetic Drill Machine in Work

    High Speed Magnetic Drill Machine in Work

    Along with other hard factors the inside speed and accuracy also needs to be checked because when you work with the large size metal you need some extra speed to cover the whole work piece in less time frame and that is where the speed of the machine made the difference.

    It is hard to get highly precise and accurate drilled holes on to the work piece but by using the magnetic base drill machine you can easily handle that task but you need to be careful while setting the speed and accuracy of the drill.

    These are some of the factors that can help you to decide what type of magnetic base drill machine you want to buy there is some other factors also like consumption of electric power per hour or production speed of the machine but they can be utilized by working on the functionality levels of the machine.

    10.What is the technical specification of a Magnetic Base Drill Machine?

    Here is the technical specification table of a magnetic base drill machine it is not authentic or you can say the specifications of the machine lies according to the type of machine so, every machine has its own specs and figures.

    Weight of the Magnetic drill machine.20-30 KG but lies according to the type and size.
    Maximum rate of power.1150 watts for BDS mechanism based drill machine.
    Size of the machine.40x55 mm lies according to the machine type.
    RPM (Round Per Minute) Speed.400 to 470 rpm
    Required Voltages.230 Volts.

    These are some of the common specs about the magnetic base drill machine. These specs do not remain same for all drilling machine as a matter of fact they lies from type to type along with other factors.

    11.What type of settings I should use in Magnetic Base Drill machine when working with rigid metal items?

    Magnetic Drill & Tapping Machine

    Magnetic Drill & Tapping Machine

    Setting or you can say the work procedure of the magnetic base drill machine for rigid items can be done in some simple steps.

    Selection of Drilling Bit

    According to the rigidity of the metal select the best usable drill bit for making holes into the work piece. The selection of drill jig or bit also defines the size of holes that you are going to make into the metal element.

    On a user manual guide there is a chart provided to you which helps you to select the drill bit according to the drill holes you want to make.

    RPM Speed

    After putting the drill bit into the chuck set the rpm speed of the machine for instance if you are looking to work with a fully rigid metal element then set the rpm speed up to maximum as it will increase the torque which will further help you to increase the production speed.

    Set the rpm speed and also check the other settings on the panel to make sure that you are all set to go with the drilling process.

    Set up & Holes

    Holes on a Metal Work Piece

    Holes on a Metal Work Piece

    After successfully setting up all the basic functionalities adjust the element on the table and start the drilling process. After making the holes into the work piece try to test those holes by putting a metal wire or screw to check the size and depth of the holes.

    If you see any kind of fluctuation in the sizing and depth of the holes try to adjust the settings according to the requirements.

    That is how you set up your magnetic base drill machine environment to work with it effectively and efficiently.

    12.What is the good RPM for a good Magnetic Base Drill Machine?

    Portable Magnetic Drill Machine

    Portable Magnetic Drill Machine

    As you know every machine has its own functionality level and automation level so we can not say that the idle RPM speed of the machine is 400 cycles because that is not true. And the RPM speed in magnetic base drill machine also depends upon the type of environment you have set for the machine and what type of model you are using for the drilling purpose.

    RPM speed of the drilling machine defines the production speed of the machine. Most of the magnetic base drill machines have a RPM speed of 370 to 470. And the RPM speed can be adjusted according to the type of the material with you are working.

    13.What are the possible troubleshoots of the Magnetic Base Drill Machine?

    There are some common and general problems that you face when working with the magnetic base drill machine but you do not need to worry about these problems because these failures are often happen in a drilling process and you can easily troubleshoot them.

    • Sometimes, making holes into the hard element take more time than usual if this kind of problem you face during the drilling process try to set the maximum RPM speed and put enough pressure in the drill head.
    • If the drill jig not operating properly reach the chuck unit and replace the drill tip or jig with the new one.
    • Loss of circulation is also one of the common problem that can occur the easy way to fix this is adjusting the work piece effectively on the table because sometimes the vibration of the drilling set off the work piece from the table.
    • Cleaning failure can also happen during the magnetic base drill machine this is mostly happen because of damaged drill bit which you can replace easily.
    • Mud Contamination will lower the RPM speed and production speed of the drill machine because it works as a retarding force against the rotational movement of the drill try to clean the chuck and key hole to maintain the good RPM speed of the drill machine.

    14.How to optimize the performance of a Magnetic Base Drill Machine?

    Magnetic Drill Machine-1

    Magnetic Drill Machine

    If you want to get the maximum output from your machine then you need to do some work on your magnetic base drill machine to get the optimized performance.

    You need to check all working parts before starting any kind of drilling process because this will help you to analyze the machine that the machine is all right and working properly without any resistive force.

    Try to regularly clean the chuck part of the machine and the key hole as well because that is where the dust contamination happen which will affect the speed of your machine and in that case it will also cause an effect on the power motor to consume more energy.

    Start the machine and leave it in idle state for 20 to 30 seconds so that all the parts of the machine get into the working rhythm. This will help you to tell about the RPM speed and average rate of rotation on the drill jig.

    Try to lubricate the rotational parts of the machine because frictionless parts will work more effectively as compared to the sick and dry parts. This will help you to get flawless production from the magnetic base drill machine.

    Apply Our Best Quotation

    Invalid Email
    Scroll to Top
