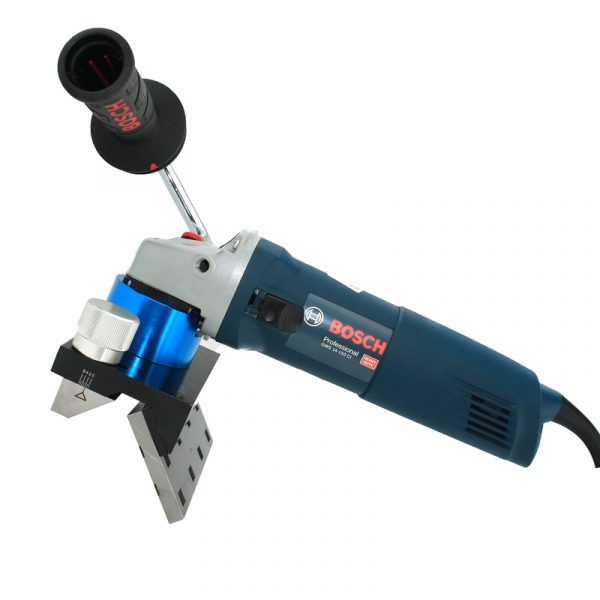

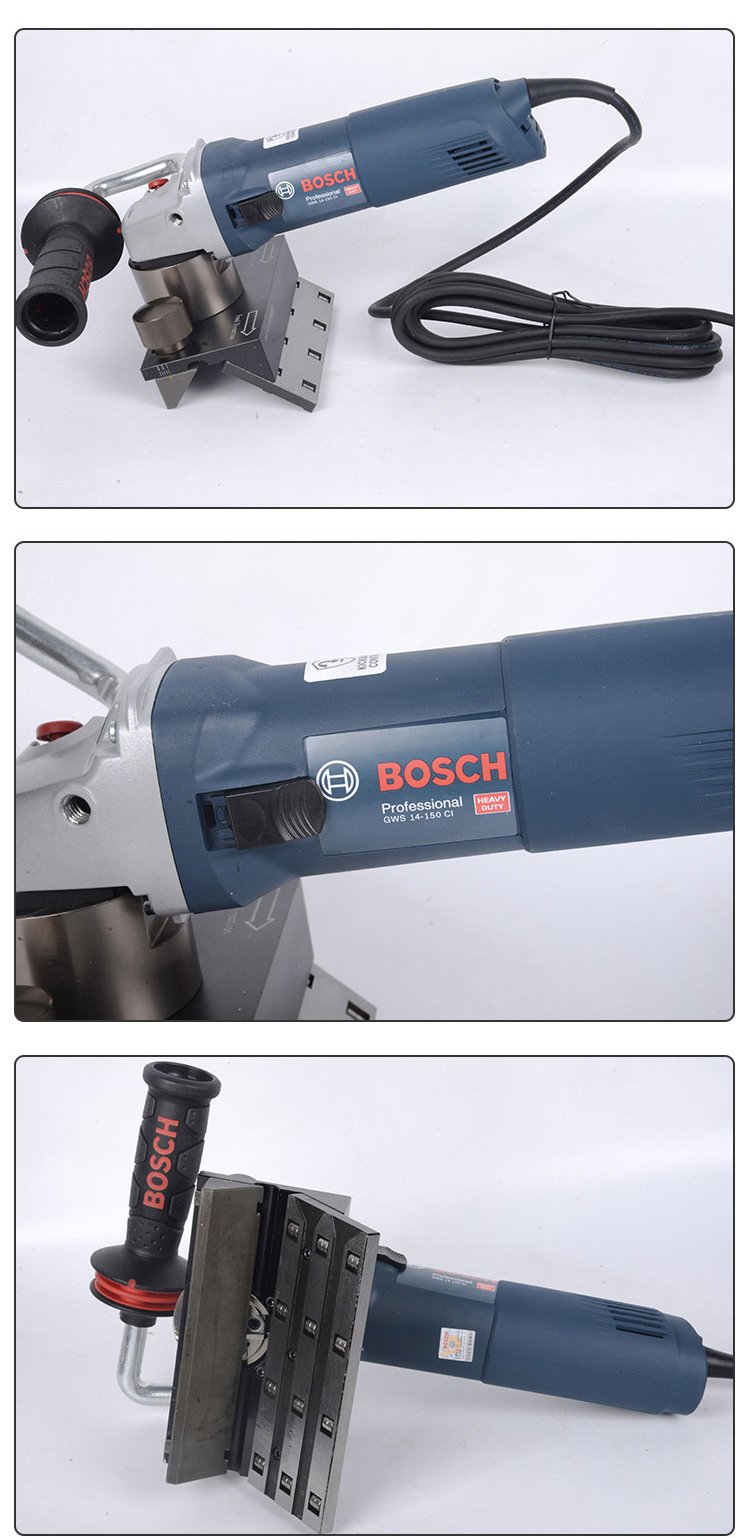

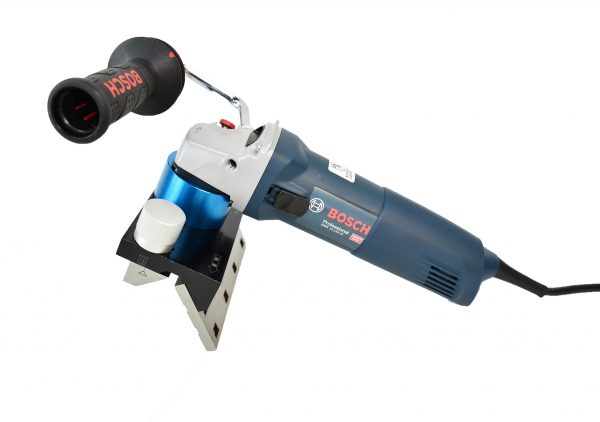

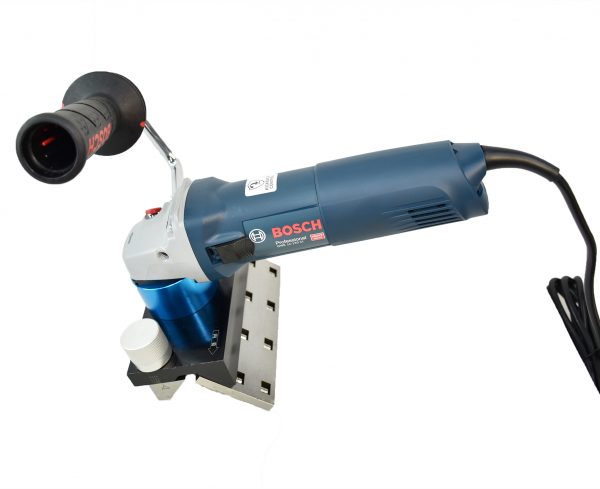

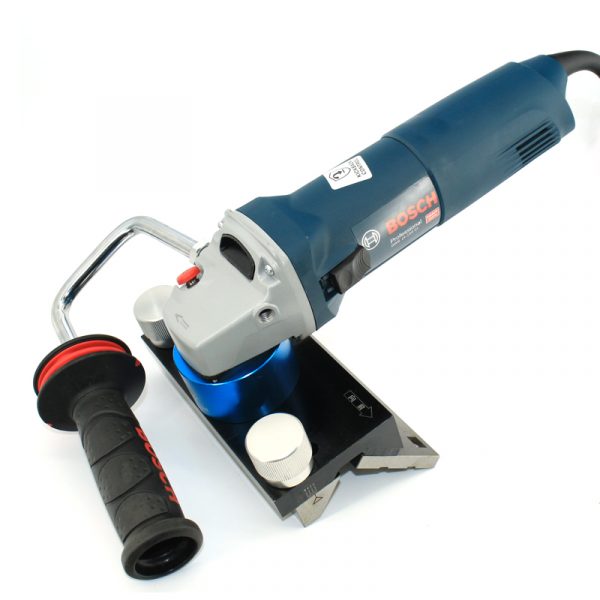

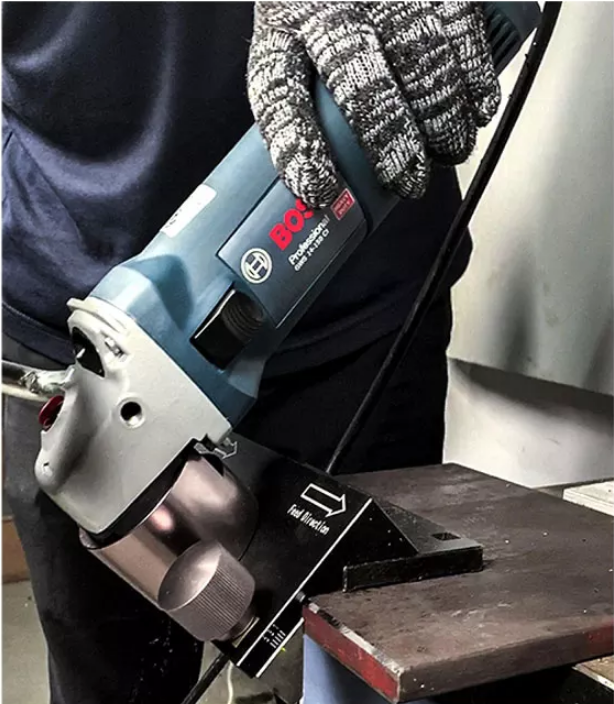

D140 Portable electric chamfering machine

Working direct at the workpiece, hence ideal for processing of oversize boards, steel joists and profiles with a 90º surface
Designed for chamfering straight edges and preparation of welding seams

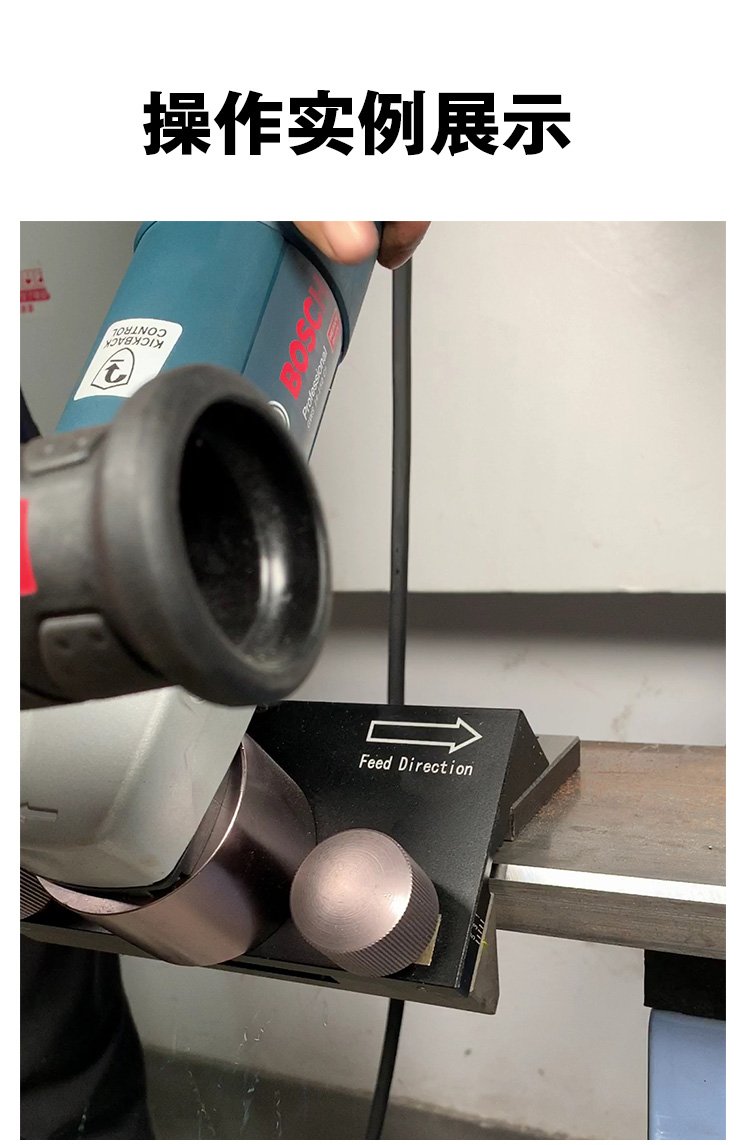

Application area is directly on workpiece, ideal for processing of large boards
Quick and easy removal of cutting edges

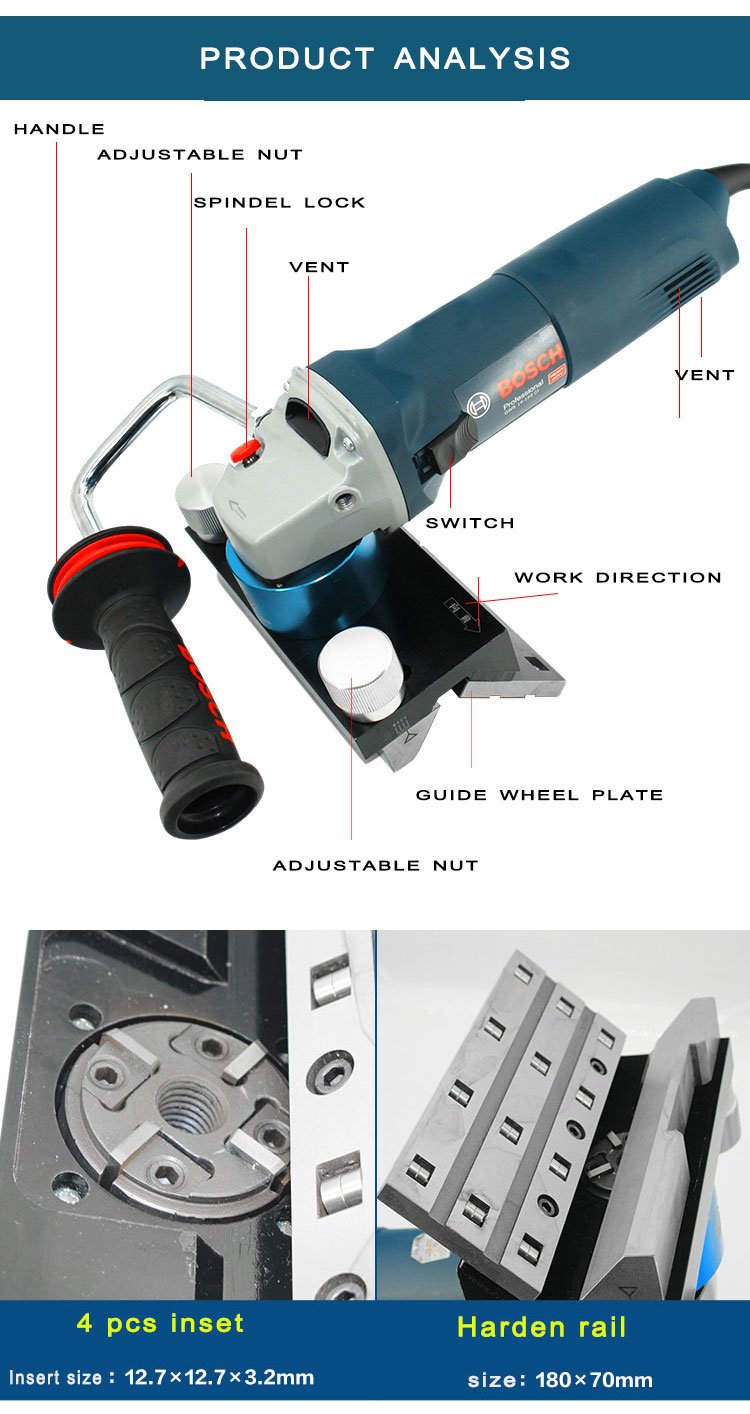

Guide rails are hardened and feature integrated rolls for easy feed
Ergonomic two-hand control ensures high working comfort

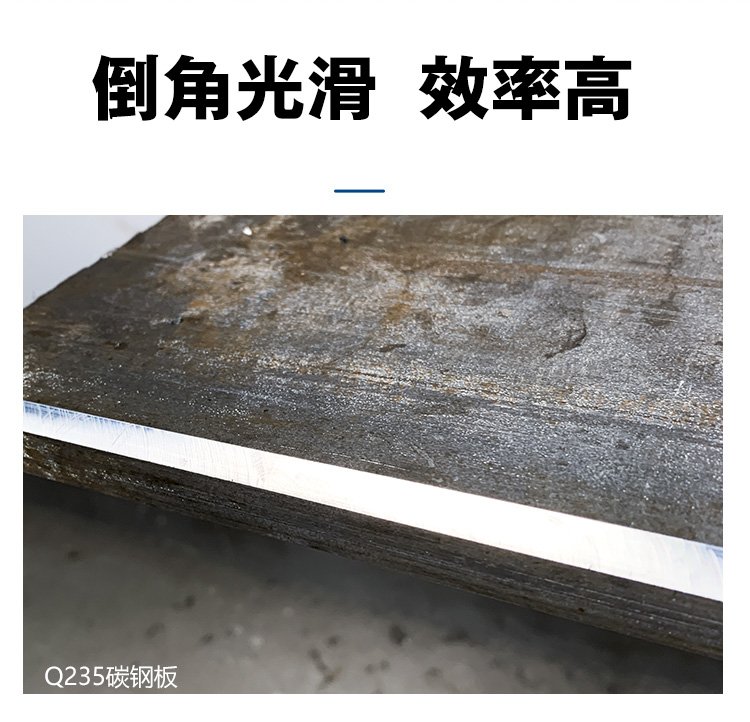

Metal bevelling tool for chamfer heights up to 4 mm for weld seam preparation
Universal milling head with three carbide indexable inserts for all chamfer angles 45°
Controlled working by virtue of large-scale guide plates
Stop roller to guide along pipes for easy preparation of weld seams
Bail handle adjusts without tools for secure, even guiding
BOSCH Long-life 1400w motor featuring high torque, 3-5times lifetime compared with induction motor
Electronic overload protection, soft start and restart protection
Suitable for steel, stainless steel, aluminium and non-ferrous metals

Max. bevel width at 45°	5 mm
Chamfering Angle	45°
Guide rail	C-17mm/R-19mm
No-load Speed	11000 rpm
Motor power	1400W
Voltage	220 V 50Hz
Machine dimension (L x W x H)	320 x 200 x 230 mm
Weight approx.	5.2 kg
Type of edges	Chamfer
Grading of cutting depth setting	0.1 mm

Ideal for the following applications:

Moldmaking (straighten edges, internal and external radii and countersink holes from 7/8″ dia.)
Boiler and process plant construction (prepare weld seams on heat exchangers)
Mechanical engineering (deburr machine parts, chamfer edges to protect against paint peeling and create visible edges)
Sheet metal (deburr cut edges)
