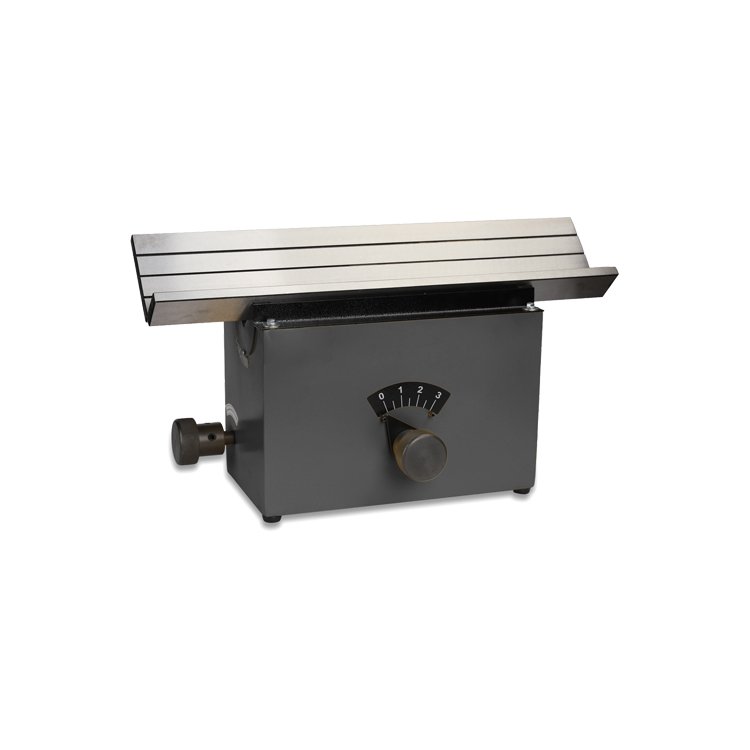

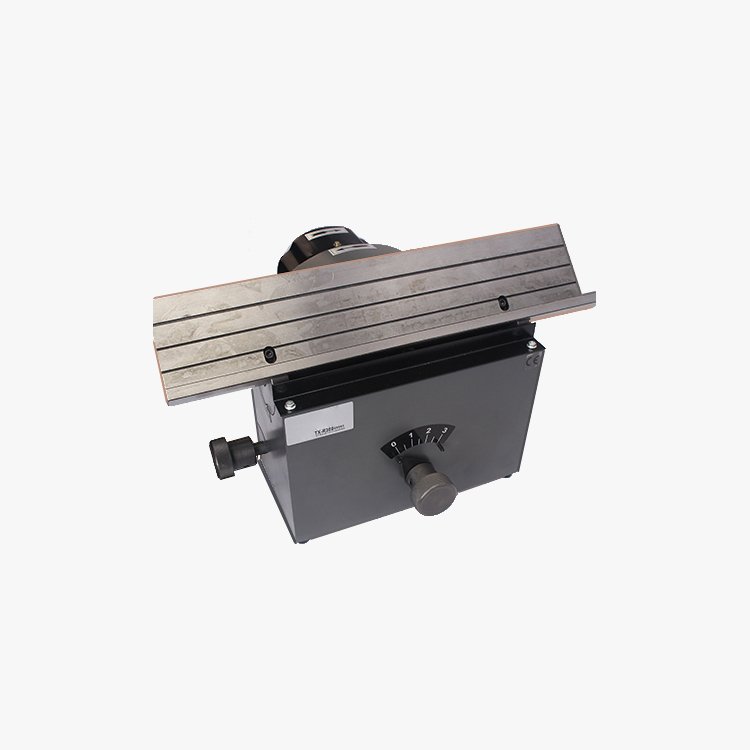

DG300 Electric Chamfering Machine

The Armpro DG300 electric chamfering machine is light in weight and beautiful in appearance, it is easy to operate. This type hand held metal cutter can effectively chamfer straight and irregular curves, saving time and power for technical installation. Thanks to the flexible height adjustment device, this type Armpro DG300 electric chamfering machine is well received by the customers.

Additional custom flexibility

Mobility and ease of use

Considerable safety design

Request A Quick Quote

DG300 Electric chamfering machine

The DG300 chamfering machine is perfect for deburring and chamfering various materials as well as for economic preparation of welding seams.

Properties

Easy setting of milling depth and desired angle
Highly suitable for deburring and chamfering (visible edges) of various material e.g. steel, aluminium, non-ferrous metals, plastics etc.
Ideal machine for economic preparation of welding seams
Stepless adjustment of chamfering angle from 15º to 45º
Low cost model for light to mid-range demands

Technical specifications

Max. bevel width at 45°	5 mm
Angle adjustment	15° – 45°
Guide rail	500 mm
Speed	2800 rpm
Motor power	0,55 kW
Voltage	400 V
Machine dimension (L x W x H)	500 x 370 x 265 mm
Weight approx.	33 kg

APPLICATION FIELD

Moulds & Dies
Automotive industry
Auxiliary in CNC machines
Plate industry
Mechanization industry
Aerospace
Consumer electronics
Medical industry
Defense industry
Oil & gas industry

PRODUCT ADVANTAGES

Easy setting of milling depth and desired angle
Highly suitable for deburring and chamfering (visible edges) of various material e.g. steel, aluminium, non-ferrous metals, plastics etc.
Ideal machine for economic preparation of welding seams
Stepless adjustment of chamfering angle from 15º to 45º
Low cost model for light to mid-range demands

TECHNICAL PARAMETERS

Max. bevel width at 45°	4 mm
Angle adjustment	45°
Guide rail	500 mm
Smallest inner radius	7 mm
Speed	10.000 rpm
Motor power	0,75 kW
Voltage	400 V
Machine dimension (L x W x H)	560 x 500 x 495 mm
Weight approx.	62 kg
