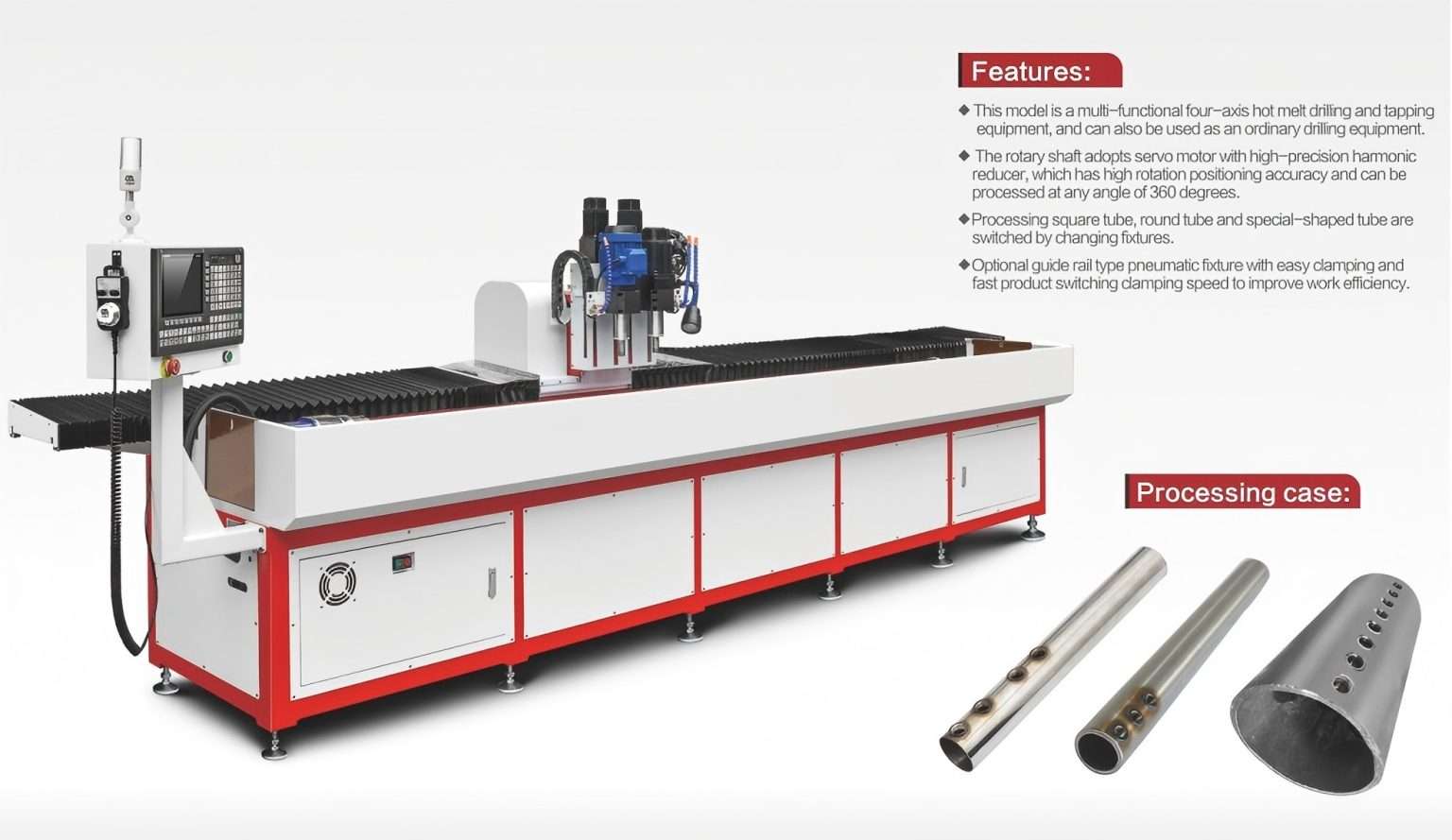

| Item | DHM-1003DT(R1) | DHM-2003DT(R1) | DHM-3003DT(R1) | DHM-4003DT(R1) | |
| Processing stroke (stroke can be customized) |
Xaxis | 800mm | 1800mm | 2800mm | 3800mm |
| Yaxis | 200mm | ||||
| Zaxis | 360° | ||||
| Spindle | Speed | 1500~24000rpm(Can be configured according to actual demand) | |||
| Taper hole | ER20 | ||||
| Power | 0.55kw~3.0kw(Can be configured according to actual demand) | ||||
| Movement speed |
Xaxis | 30m/min~60m/min | |||
| Zaxis | 25m/min | ||||
| Processing capability |
Driling | 1~20mm | |||
| Tapping | M2~M14 | ||||
| Chamfering | 1~20mm | ||||
| Rotary shaft clamping diameter | 10~200mm(Can be configured according to actual demand) | ||||
| Too magazine | Manual tool change | ||||
| Repeated positioning accuracy | ±0.02mm | ||||
| Programming mode | CADfile import/computer programming/instructional programming/manual programming | ||||
| System program memory | About 10000 pcs | ||||
| System external signal control | Support | ||||
| Working voltage | AC 220V/50HZ | ||||
| Floor area | 2500mm*1500mm*1700mm | 3500mm*1500mm*1700mm | 4500mm*1500mm*1700mm | 5500mm*1500mm*1700mm | |
| Machine tool weight | About 1100kg | About 1600kg | About 2100kg | About 2600kg | |
