M312-TWL Electric Tapping Machine

Equipped with high definition touch screen, advanced mechanism design, Armpro automatic M312-TWL electric tapping arms can realize the vertical and horizontal work of complex and heavy.Armpro automatic M312-TWL electric servo motor tapping arms is favored by the machining industry and a variety of large, medium and small batches of processing industry.

Various Degree Tapping Device

Depth precision

Wide application

FA1912 Servo ELectric tapping machine

ELECTRI TAPPING MACHINE FEATURES:

FA1910 FA1912 FA1916 FA1920 FA1916L
Tapping capacity M3-M10 M3-M12 M3-M16 M3-M20 M3-M16
Voltage:                        220/50hz
Motor Power 600W 600W 600W 600W 600W
Spindle speed 1200rpm 660rpm 375rpm 240rpm 375rpm
Working Radius in Horizontal 1045mm 1513mm
With extension arm
Working Range in Vertical 570mm 729mm
Spindle taper B16
Quick change chuck size 19mm
Tap collet M3-M10 M3-M12 M3-M16 M3-M20 M3-M16
Torque Max 18N.M 33N.M 58N.M 90N.M 58N.M
N.W 34kg 34kg 34kg 34kg 34kg
Overall Size 700*600*220mm 61*41*124

• With lower consumption compared with tradional pneumatic tapping machine.

•Taps both blind and through holes with automatic depth control,tapping counter,torque value control, speed control easily via servo motor system.

• Both manual or automatic tapping model available.

• Peak tapping model for harden materials tapping. (for holes that clog with swarf , harden materials)

• The arm equipped with bearings at all swivel points, provides weightless operation through the use of damper and permits the operator to bring the tap to the hole with ease.

• Highly flexible Faster tapping cycles.

METRIC, BSP, BSW, UNC, UNF, NPT IN DIN OR ISO standard chuck collet available

DIGITAL TOUCH SCREEN CONTROL Program in English, Spanish, Portuguese, Italian, Russian available.

• Servo motor with Torque protection and Ratchet Tap holder to avoid tap broken. And the torque can be manual adjusted if required

• Faster tap positioning with difficult locations –easier to reach holes

• Increases productivity – lowers tapping cost per part

• Touch screen easy set parameters, RPM and thread pitch to program auto reverse.

• With Optional Automatic MQL Minimum Quantity Lubrication System ,only a few milliliters of lubricants are spent per hour,  ecological and economical solution compared with conventional cooling processes. and compressed air flow can be adjusted to blow away the iron filings easily.

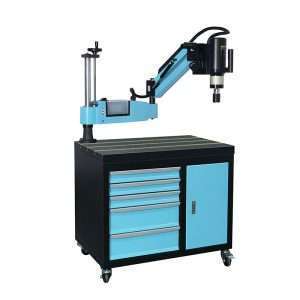

IRON STEEL WORKING TABLE TECHNICAL PARAMETERS

working table surface size: 900*600mm

Table surface with precision grinding treatment and M14 T-slot.

With Five sliding drawers and cabinets

Packing details:

Packed in export standard plywooden case with steel handle for convenient transport.

Tapping machine size  69*65*21cm  32kg            Working table size        95*65*82cm 128kg



If  our electric tapping machine can do Other operations:

  • Countersink hole, tightening, Screwing, riveting, Helicoils inserts.etc.

Optional working table with oil recycling

And we made high quality Precision working table suface with Milling water sink and T-slot for our Spanish client.



APPLICATION FIELD

  • Moulds & Dies
  • automotive industry
  • Auxiliary in CNC machines
  • Plate industry
  • Mechanization industry
  • Aerospace
  • Consumer electronics
  • Medical industry
  • Defense industry
  • Oil & gas industry

PRODUCT ADVANTAGES

  • Includes quick change chuck for use of taps for through and blind holes
  • Tiltable motor unit for tapping at any required angle between 0° and 90°
  • Higher accuracy compared to manual tapping, thread is guaranteed right angle (90 °)
  • High productivity, significant time savings compared to manual tapping
  • Quick-change chuck with integrated safety clutch prevents breakage of the tap drill
  • Optionally available magnetic base for direct use on large and heavy workpieces
  • Including swivel arm with large radius for easy positioning of the tap drill on the workpiece
  • Highly economical due to low investment and maintenance costs
  • For tapping in steel, stainless steel, aluminum and non-ferrous metals

TECHNICAL PARAMETERS

Technical specifications

Tap holes* M3 - M16
Speed max.  375rpm
Adjustable angle 0° - 90°
Max. working radius R 1750 mm
Quick change chuck DIN 371: M3 / M4 / M5-6 / M8 / M10/M12/M14/M16
Motor power 600 W
Voltage 230 V
Weight approx. 35 kg

* Material strength 400 N/mm²

METRIC, BSP, BSW, UNC, UNF, NPT DIN OR ISO standard chuck collet available
