M636-TWL Electric Tapping Machine

The control mode of Armpro hot seal M636-TWL automatic air tapping tool is the touchscreen, so it can be used for analyzing the data of laboratory; it can replace the desktop machine as well. Because the high definition touch screen is simple and flexible, this type of tapping arm can tap on complex and heavy workpieces, with quick location and accurate process.

Professional speed adjustment

Intelligent torque protection

Electricity consumption

FA3136 Smart ELectric tapping machine

ELECTRI TAPPING MACHINE FEATURES:



FA3124A FA3120 FA3124 FA3133 FA3136 FA3124L
Tapping capacity M3-M24 M4-M20 M6-M24 M6-M33 M6-M36 M6-M24
Voltage:                               220/50hz
Motor Power 1200W
Spindle speed 200rpm 550rpm 200rpm 156rpm 125rpm 220rpm
Working Radius in Horizontal 1180mm 1724mm
Working Range in Vertical 705mm 830mm
Spindle taper B18
Quick change chuck size 31mm
Tap collet M3-M24 M4-M20 M6-M24 M6-M33 M6-M36 M6-M24
Torque Max 300N.M 108NM 300NM 384NM 480NM 300NM
N.W 52kg 60kg
Overall Size 810*770*220mm

• With lower consumption compared with tradional pneumatic tapping machine.

•Taps both blind and through holes with automatic depth control,tapping counter,torque value control, speed control easily via servo motor system.

• Both manual or automatic tapping model available.

• Peak tapping model for harden materials tapping. (for holes that clog with swarf , harden materials)

• The arm equipped with bearings at all swivel points, provides weightless operation through the use of damper and permits the operator to bring the tap to the hole with ease.

• Highly flexible Faster tapping cycles.

METRIC, BSP, BSW, UNC, UNF, NPT IN DIN OR ISO standard chuck collet available

DIGITAL TOUCH SCREEN CONTROL Program in English, Spanish, Portuguese, Italian, Russian available.

• Servo motor with Torque protection and Ratchet Tap holder to avoid tap broken. And the torque can be manual adjusted if required

• Faster tap positioning with difficult locations –easier to reach holes

• Increases productivity – lowers tapping cost per part

• Touch screen easy set parameters, RPM and thread pitch to program auto reverse.

• With Optional Automatic MQL Minimum Quantity Lubrication System ,only a few milliliters of lubricants are spent per hour,  ecological and economical solution compared with conventional cooling processes. and compressed air flow can be adjusted to blow away the iron filings easily.

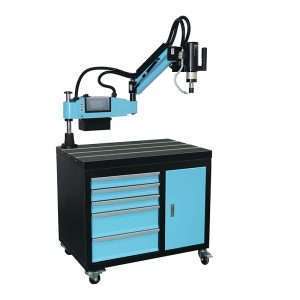

IRON STEEL WORKING TABLE TECHNICAL PARAMETERS

working table surface size: 900*600mm

Table surface with precision grinding treatment and M14 T-slot.

With Five sliding drawers and cabinets

Packing details:

Packed in export standard plywooden case with steel handle for convenient transport.

Tapping machine size  69*65*21cm  32kg            Working table size        95*65*82cm 128kg



If  our electric tapping machine can do Other operations:

  • Countersink hole, tightening, Screwing, riveting, Helicoils inserts.etc.

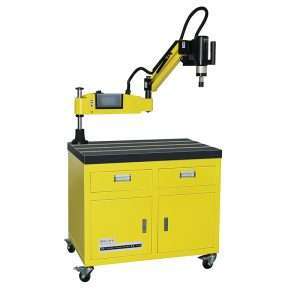

Optional working table with oil recycling

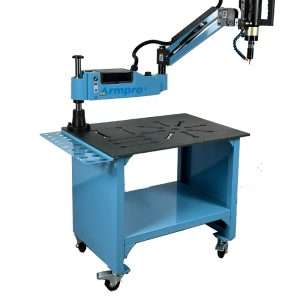

And we made high quality Precision working table suface with Milling water sink and T-slot for our Spanish client.



APPLICATION FIELD

  • Moulds & Dies
  • automotive industry
  • Auxiliary in CNC machines
  • Plate industry
  • Mechanization industry
  • Aerospace
  • Consumer electronics
  • Medical industry
  • Defense industry
  • Oil & gas industry

PRODUCT ADVANTAGES

  • Includes quick change chuck for use of taps for through and blind holes
  • Tiltable motor unit for tapping at any required angle between 0° and 90°
  • Higher accuracy compared to manual tapping, thread is guaranteed right angle (90 °)
  • High productivity, significant time savings compared to manual tapping
  • Quick-change chuck with integrated safety clutch prevents breakage of the tap drill
  • Optionally available magnetic base for direct use on large and heavy workpieces
  • Including swivel arm with large radius for easy positioning of the tap drill on the workpiece
  • Highly economical due to low investment and maintenance costs
  • For tapping in steel, stainless steel, aluminum and non-ferrous metals

TECHNICAL PARAMETERS

Technical specifications

Tap holes* M3 - M16
Speed max.  375rpm
Adjustable angle 0° - 90°
Max. working radius R 1750 mm
Quick change chuck DIN 371: M3 / M4 / M5-6 / M8 / M10/M12/M14/M16
Motor power 600 W
Voltage 230 V
Weight approx. 35 kg

* Material strength 400 N/mm²

METRIC, BSP, BSW, UNC, UNF, NPT DIN OR ISO standard chuck collet available
