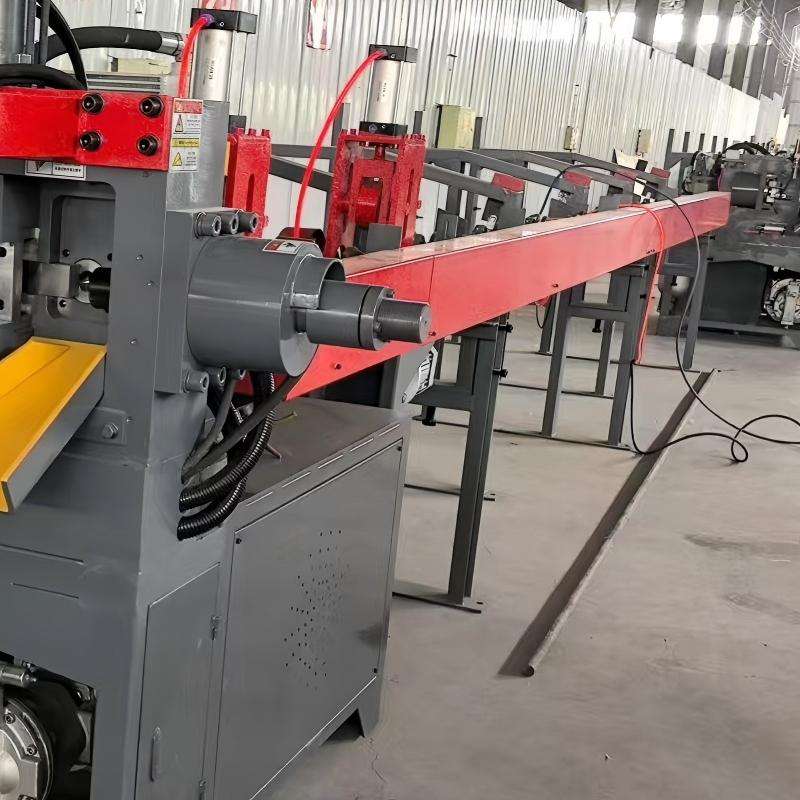

BZQ130 Hydraulic Steel Bar Cutting Machine



BCM-50 main technical parameters
Model BCM-50
The max diameter of cutting 50mm
The fastest speed of cutting(s/min) 38
The scope of gauge(mm) 30-350
Main motor power 7.5KW
Yes or No the clutch Yes
The size of equipment 520*980*1490
The motor of automatic feeding frame 0.75kw
The feeding speed 300mm/s
The discharging mouth from the ground level 890
The size of feeding frame(mm) 6000*1800*1000
Weight(kg) 3500



BCM-50 Material allocation table
Meterial The max diameter of cutting remark
Round steel
 20#  Q235  φ52  If the material is cold rolled condition,the max diameter of

shearing reduces by twenty percent

 20MN  20Cr  φ45
 45#  1Cr13  40MN  φ48
  55# 40Cr   20CrMnTi  2Cr13  φ40
   35CrMo 3Cr13  φ32
 42CrMo GCr15 60Cr2Mn  φ30
