BCM-80 Automatic steel bar cutting machine with feeder



1. It adopts a fully automatic feeding rack, no need for manual feeding, turning, and feeding, one person with multiple machines. Reduce labor intensity and save costs.
2. Professional double metal sliding guide, anti-wear, durability and good
3. Fully enclosed clamshell knife mold, easy to change the knife, 360-degree rotation, repeated use, longer service life
4. reinforced gear alloy steel production, standardizing heat treatment, transmission torque
5. Reasonable retaining design makes the size of the blanking more accurate, the weight deviation is smaller, and the section flatness is higher
6. Reasonable design of retaining mechanism to make the size of blanking accurate and easy to adjust
7. The equipment adopts an automatic centering device, cutting round steel of different diameters without adjusting the height of the feeding frame
8. Professional bi-metal sliding guide, good wear resistance, and durability
9. Guide rail lubrication automatic oil pump added, automatic alarm for oil cut
2、Using closed mould,replacing the mould is very convenient ,the mould can be used repeatedly through rotate it,for long service life.
3、The drive gears adopt high quality alloy steel,after heat treatment and lapping finish
4、Professional bimetal sliding guide rail,good resistance to wear and durability
5、Adopted with center automatic lubrication system for guideway to have the good performance for little resistance,little friction,good lubrication and long life etc.oil cut-off automatic alarm
6、Keep-off mechanism design is reasonable,makes the size of blanking exact,small tolerance

7、Using the enclosed gear box, gear gumming lubrication



LYQ-30 main technical parameters
Model BCM-80
The max diameter of cutting 80
The fastest speed of cutting(s/min) 22
The scope of gauge(mm) 35-200
Main motor power 18.5
Yes or No the clutch yes
The size of equipment 1300*1560*1700
The motor of automatic feeding frame 1.5KW
The feeding speed 300mm/s
The discharging mouth from the ground level 862mm
The size of feeding frame(mm) 6000*1800*1000
Weight(kg) 6500



BCM-80 Material allocation table
Meterial The max diameter of cutting remark
Round steel
20#  Q235 φ80 If the material is cold rolled condition,
the max diameter of shearing reduces by twenty percent
20MN  20Cr φ78
45#  1Cr13  40MN φ75
 55# 40Cr   20CrMnTi  2Cr13 φ65
  35CrMo 3Cr13 φ60
42CrMo GCr15 60Cr2Mn φ50



Product Details

CNC lubricating oil pump

The automatic lubrication system consists of CNC lubricating oil pump and oil separator.

It can automatically and accurately refuel to each refueling point, which is convenient and practical, and eliminates the hidden danger of wear caused by lack of oil.
Oil separator
The automatic lubrication system consists of CNC lubricating oil pump and oil separator.It can automatically and accurately refuel
to each refueling point, which is convenient and practical, and eliminates the hidden danger of wear caused by lack of oil.
Circuit control
The circuit design is more stable, the panel operation is more convenient, and the feeding method can be easily controlled by adjusting the button
Cylinder
The reasonable design of the cylinder makes the clutch separation and coupling more efficient, instead of the original clutch which is completed by hand, it is easy to operate and greatly improves the cutting efficiency.

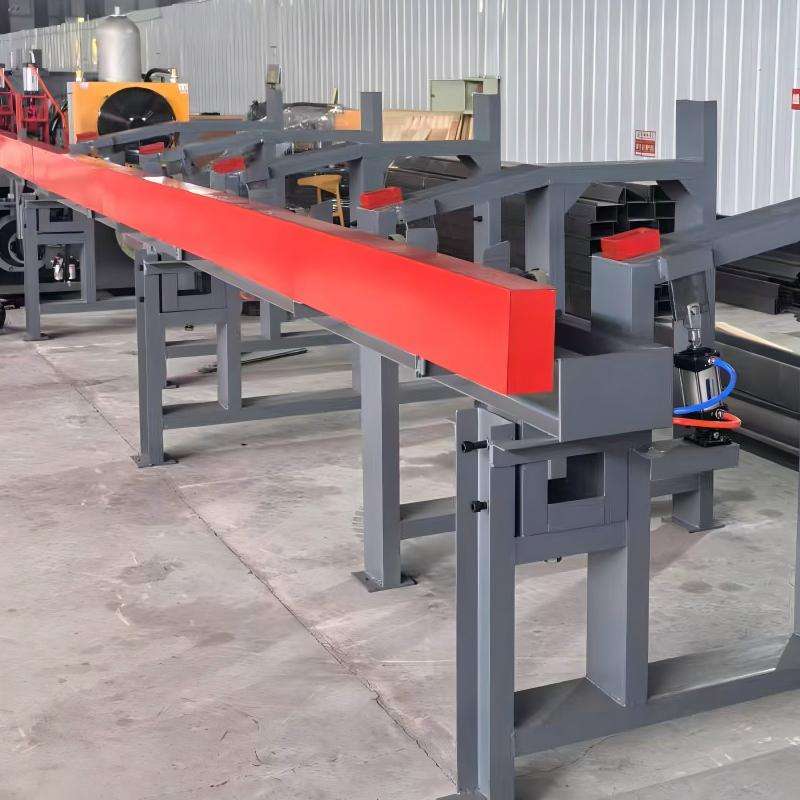

Automatic feeding

The full-automatic round steel cutting machine adopts a full-automatic feeding rack, which can realize full-automatic unloading only by placing the whole bundle on the auxiliary rack, without manual feeding, turning and feeding, reducing work intensity, realizing one person with multiple machines, and reducing labor Cost, create maximum value for the enterprise.
