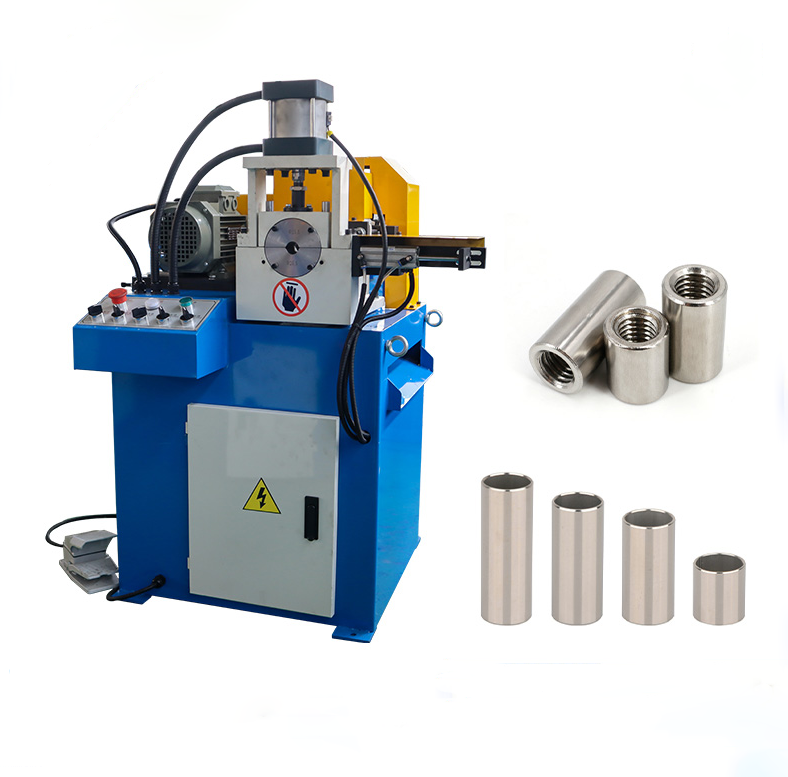

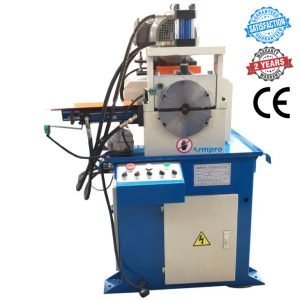

Single End Round Bar Chamfering Machine
OD up to 200mm
Pipe & rod chamfering machine
Chamfer long and short pipe & rod
Single end chamfering, Manual feeding, automatic clamping, automatic chamfering
arameters
| Model | PCM-200AC |
| Type | Hydraulic drive |
| Pipe Diameter | 30-200mm |
| Bar Diameter | 10-35mm |
| Work Length | ≥50mm |
| Work accuracy | ±0.1mm |
| Work Speed | 3-5s/pcs |
| Machine Motor | 4kw |
| Work Pressure | MPA 6-8KG |
| Weight | 500KG |
| Dimension | 120*142*155cm |
OD 200mm Single End Round Bar Chamfering Machine
Features
● OD up to 200mm large diameter pipe,facing rod end up to diameter 25mm
● Different rotation speeds for various materials and requirements ( Pulley setup )
● Suitable for stainless steel,carbon steel,aluminum,copper
● High efficency and output
● Specially suitable for thick-walled pipe
Options Available
● Radius blade,round end chamfer blade
● Customized chamfering angle tool holder
● Chamfering seat for Centering drill
● Chamfering seat for tube boring
● Chamfering seat pencil pointing head
● Other Customized tools,blade,cutter head
● Automatic feeding device for bolts,stud
