HMLV Production Challenge: How to Achieve 30-Minute Changeovers on a Single Chamfering Machine? (2026 Guide)
Goodbye to "Half-Day Setup, One-Hour Run": Decoding Armpre's Universal Fixturing Strategy & SMED Solutions.
In the current gear manufacturing market, "High-End Customization" and "High-Mix Low-Volume" (HMLV) orders have become the norm. But for workshop managers, this is a nightmare: Internal Ring Gears in the morning, Long Shafts in the afternoon, and rushing a few Helical Gears in the evening.
Traditional gear chamfering machines are "Dedicated". Changing a fixture takes half a day; adjusting the G-code program requires an expert. The result is abysmal equipment utilization—the machine spends more time sitting idle than cutting metal.
If you are facing this "Production Line Killer," this guide reveals how Armpre helps Korean clients compress cross-product changeover times to under 30 minutes using "Universal Fixturing" and "Conversational Systems".
1. Hardware Revolution: One Set of Fixtures for Three Types of Parts

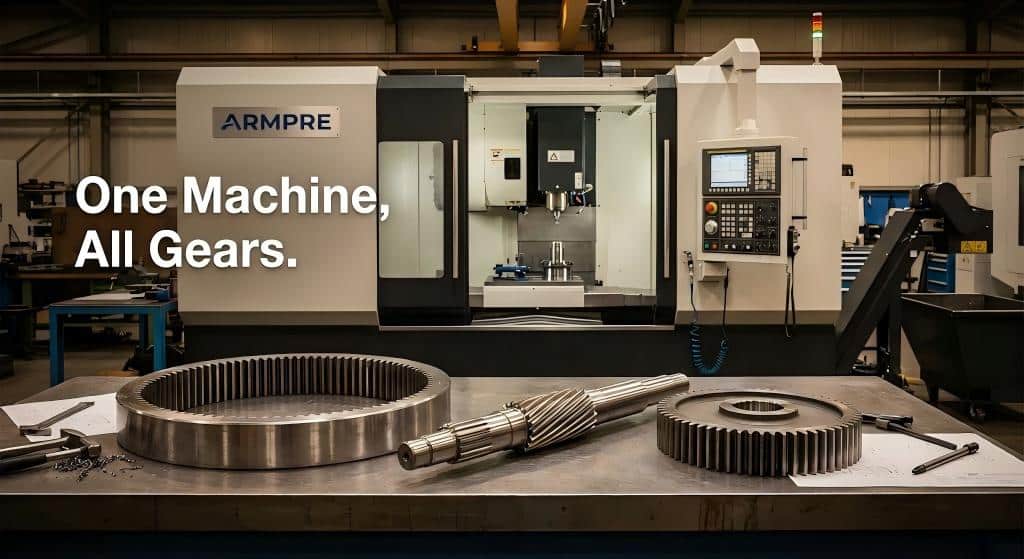

In a recent export order to Korea, the client's requirements were demanding: one machine must process Ring Gears, Shafts, and Disk Gears. We didn't make them buy three machines. Instead, we configured the "Top 3 Clamping Systems":
[Image Placeholder: Armpre Universal Fixturing System - Hydraulic Chuck, Mandrel, Live Center] Figure 1: Universal Adaptation. Left: Hydraulic Chuck (Ring Gear); Center: Precision Mandrel (Disk Gear); Right: CNC Live Center (Shaft).
-
For Internal Ring Gears / Thin-Walled Parts: We use a top-tier Japanese Hydraulic Chuck. It solves the deformation issue of thin-walled parts by providing uniform multi-point force, ensuring high-precision centering clamping.
-
For Long Shaft Gears: Paired with a Korean GG High-Speed Live Center. This provides strong axial support, preventing radial run-out during high-speed chamfering.
-
For General Spur/Helical Gears: We use a High-Precision Expanding Mandrel. This achieves rapid bore positioning with a repeat clamping accuracy of 0.05mm. Changing over only requires swapping the mandrel head, not the base.
💡 Tony's Insight "Many factories use manual chucks to save money, but every changeover requires re-aligning with a dial indicator, taking over 2 hours. With our standardized quick-change interface, physical changeover time is reduced by over 60%. That is real ROI."
Comparison: Traditional Chuck vs. Armpre Quick-Change System
| Feature | Standard 3-Jaw Chuck | Armpre Universal System |
|---|---|---|
| Changeover Time | 20 - 45 Minutes (Manual Align) | < 5 Minutes (Quick-Lock) |
| Run-out Accuracy | 0.05mm - 0.10mm | < 0.01mm (Hydraulic/Mandrel) |
| Thin-Wall Parts | High Deformation Risk | Safe (Uniform Pressure) |
| Operator Skill | High (Must use dial indicator) | Low (Plug & Play) |
*Data based on Armpre internal testing comparing Module 4 gear setup.
2. Software "Zero-Code" Revolution: Shift Leaders Can Program
The hardware is swapped, but what about the software parameters? Traditional CNC requires rewriting G-code, which is error-prone and relies on expensive engineers. Armpre's "Conversational Programming System" changes everything.
-
Farewell to G-Code: The operator simply inputs Module, Tooth Count, and Helix Angle on the HMI touchscreen, and the system automatically generates the 3D tool path.
-
One-Click "Process Library": The system comes pre-set with four standard modules: Spur, Helical, Ring, and Shaft. During changeover, simply select the corresponding product model from the menu, and parameters load in seconds.
-
Shift Leader Debugging: A floor shift leader can complete the first-piece test cut and fine-tuning without waiting for a software engineer.
[Video Placeholder: Armpre HMI Conversational Programming Demo]
👉 Deep Dive: [Manual G-Code vs. Conversational Programming: Which is Better for Small-Batch Gear Chamfering?]
3. Digital Consistency: Speed Without Sacrificing Quality
The biggest fear in rapid changeovers is "First Piece Instability." Armpre's digital storage ensures that the parameters used last year are exactly the same as this year, eliminating human adjustment errors.
This means that even with an urgent 30-minute changeover, quality is guaranteed.
👉 Quality Red Line: [Technology Reveal: How to keep secondary burrs under 0.1mm during rapid product switches?]
4. ROI Analysis: One Machine Replacing Three
By introducing the Flexible Manufacturing concept, Armpre helped the client achieve amazing ROI: One machine replaced three dedicated machines , significantly reducing floor space occupation and equipment investment costs.
👉 Future Proofing: [Automation Upgrade: If your batch size increases, how does this flexible system integrate with robot grippers?]
Yearly Cost Savings: Dedicated Machines vs. Armpre Flexible Cell
| Metric (Annual) | Traditional Setup (3 Machines) | Armpre Flexible Cell (1 Machine) |
|---|---|---|
| Machine Cost (Amortized) | $45,000 (3x Used Machines) | $35,000 (1x New Armpre) |
| Operator Labor | $120,000 (2 Operators) | $60,000 (1 Operator) |
| Downtime Cost (Changeover) | $30,000 / Year (Lost Capacity) | $5,000 / Year |
| Total Annual Cost | $195,000 | $100,000 |
💰 Potential Savings: $95,000 / Year (ROI < 6 Months)
5. Production Manager FAQs (HMLV Implementation)
Yes. The breakdown is: 10 mins to physically swap the Quick-Change Fixture (e.g., Mandrel to Chuck), 2 mins to load the new program via HMI, and 15 mins for the "First Part" verification. The standardized interface eliminates the need for manual dial-indicator alignment.
Not at all. Our Expanding Mandrel for standard gears guarantees a repeat clamping accuracy of 0.05mm. For thin-walled ring gears, the Hydraulic Chuck provides uniform pressure to prevent ovality/deformation, often outperforming manual 3-jaw chucks.
No. We designed the "Conversational System" specifically for the shop floor. Your Shift Leader can simply input the Gear Module, Tooth Count, and Angle on the touchscreen. [cite_start]The system generates the tool path automatically—no G-code typing required[cite: 1].
We install a CNC High-Speed Live Center (Tailstock). It provides strong axial support to prevent run-out and vibration, ensuring the chamfer is uniform even at high speeds. [cite_start]This is a standard module in our HMLV package[cite: 1].
Absolutely. Every Armpre machine is "Automation Ready." We pre-install the Profinet I/O interface and Auto-Door logic. [cite_start]Even if you start with manual loading today, you can plug in a FANUC or KUKA robot next year without changing the machine[cite: 1].
🤔 Not sure if your specific gears fit this machine?
Every shop is different. Send us your workpiece drawings (PDF/DWG), and Tony will provide a free Cycle Time Analysis & Fixture Proposal within 24 hours.
👨🔧 Talk to an Application EngineerFlexibility is the Core Competency
From the success story of our Korean client, multi-product changeovers are no longer a burden, but the foundation for accepting high-margin orders.
Have a complex part list?
Send us your workpiece drawings. Our engineers will design a "Quick-Change Fixture Package" tailored to your HMLV needs within 24 hours.
Stop waiting for changeovers. Start machining.
