The 2026 Automotive Gantry Milling Machine Guide
Author: Tony, Senior CNC Consultant
Updated: Jan 12, 2026
Source: Armpre Manufacturing

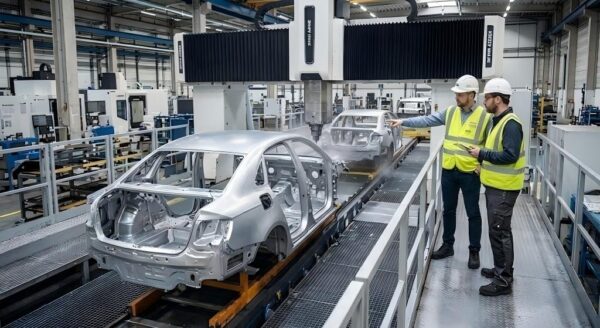

Figure 1: The 2026 Battlefield: High-precision finishing of Giga-Casting molds in a temperature-controlled environment.
Executive Summary
Executive SummaryI have spent time in clay modeling shops in Detroit and tuned parameters in lights-out factories in Shanghai. In 2026, the mission of the automotive industry's "Heavy Artillery"—the Gantry Milling Machine—has shifted completely from machining cast iron engine blocks to Giga-Casting Molds and Oversized EV Battery Trays.
Stop using 2020 rigidity standards to select your machines. The new rule of the game is: achieving micron-level dynamic precision on a 20-ton workpiece.
1. 2026 Selection Dimensions: More Than Just "Big"
In the past, when we looked at Gantries, we asked, "Can it take a heavy cut?" Now, when I stand next to a €3 million machine, I shouldn't hear the rough noise of steel cutting; I should hear the surgical hum of servo motors.
In the context of Large Mold Machining, success depends on three key metrics: Volumetric Accuracy, Dynamic Thermal Stability, and 5-Axis Surface Quality.
For 2026, the passing grade for top-tier gantry mills is strict: Under X-axis strokes > 4000mm, the machine must utilize full closed-loop linear scales and real-time thermal compensation to control Volumetric Error within ≤ 15μm. Any equipment below this standard is unfit for "Polish-Free" Giga mold finishing.
The 2026 Standard (Tony's Benchmark)2. Top 10 Global Gantry Milling Brands (2026 Ranked)
This list isn't designed to please the brands; it's designed to protect your CapEx budget. I've categorized them into "Mold Masters," "Structure Experts," and "High ROI" tiers.
| Rank | Brand | Flagship Model (2026) | Best For | Critical Limitation |
|---|---|---|---|---|
| 1 | Zimmermann (DE) | FZ 42 Portal | Giga-Casting Molds (Finishing) | Extreme Price Tag |
| 2 | SNK (JP) | RB-200M | Heavy Die Mold (Roughing) | Slow Rapid Traverse |
| 3 | Waldrich Coburg (DE) | MultiTec | Massive Chassis Dies | Huge Footprint Required |
| 4 | Okuma (JP) | MCR-S (Super) | Press Die Surface Quality | Proprietary Coding System |
| 5 | DMG MORI (DE/JP) | DMU 600 Gantry | Large EV Structures | High Service Costs |
| 6 | Breton (IT) | Flymill | High Speed Aluminum | Low Steel Capability |
| 7 | FPT Industrie (IT) | Dino | Flexible Job Shop Work | Complex Head Maintenance |
| 8 | Nicolas Correa (ES) | FOX / VERXA | Best ROI for General Dies | Lower Dynamic Acceleration |
| 9 | Fidia (IT) | GTF Series | Super-finishing (Ra < 0.15) | Light Cutting Only |
| 10 | Haas (US) | GR-712 | Plate / Patterns | No Tool Steel |
To assist you in making an intuitive comparison, we have conducted a five-dimensional scoring for the top 10 brands(1-10 points)：
| Manufacturer |  Rigidity |
 Precision |
 Dynamics |
 Tech |
 Cost Eff. |
Tony's Verdict |
|---|---|---|---|---|---|---|
| Zimmermann | 8 | 10 | 9 | 9 | 3 | The Giga-Mold King |
| SNK | 10 | 6 | 4 | 5 | 6 | Best for Roughing |
| Waldrich | 10 | 9 | 5 | 7 | 2 | Massive Scale Only |
| Okuma | 8 | 9 | 7 | 9 | 7 | The Balanced Choice |
| DMG MORI | 7 | 9 | 8 | 10 | 5 | Future Ready |
| Breton | 5 | 8 | 10 | 8 | 6 | Aluminum Specialist |
| FPT | 7 | 7 | 7 | 8 | 7 | Flexible Job Shopper |
| Correa | 7 | 8 | 7 | 7 | 10 | Best ROI Winner |
| Fidia | 3 | 10 | 8 | 8 | 5 | Finishing Only |
| Haas | 2 | 5 | 6 | 4 | 9 | Entry Level / Plate |
👨🔧 Tony's Consultant Log: The "Hand Polishing" Trap
Observation: I often see three master technicians surrounding a mold fresh off the machine, hand-polishing it with oil stones for 72 hours. Analysis: This indicates your gantry mill has "Following Error" or "Reversal Spikes" during 5-axis moves, causing surface Ra > 0.4µm. Advice: Want to save 200 hours of labor? Don't skimp on Dynamic Rigidity.
3. Deep Dive: Evolution & Risks
If your main business is handling Tesla or BYD integrated rear floor casting molds, Then you must not choose Haas GR or Fidia for roughing. The former lacks the rigidity, leading to tool chatter and scrapped parts; the latter is too slow. In this extreme scenario, you must use an "SNK (Roughing) + Zimmermann (Finishing)" AB combination strategy.
Industry Evolution
As the industry transitions from Traditional ICE Cast Iron Blocks to Hydrogen/EV Precision Structures, brands like Nicolas Correa have adapted by innovating their Guiding Systems, establishing leadership in the high-cost-performance sector.
Figure 2: Performance Radar: The massive gap in "Dynamic Precision" between Tier 1 and Tier 3 machines.
4. Procurement Must-Haves: Hard Metrics
Before sending out that RFQ, ensure these parameters are written into the Technical Agreement:
- Volumetric Accuracy: Must be ≤ 15μm in a 20°C ± 2°C environment.
- Spindle Dynamic Runout: At 20,000 RPM, tool tip runout must be < 2μm.
- 5-Axis Head (A/C Axis): Must use Direct Drive technology to eliminate backlash from worm gear wear.
Visualizing the Process: Imagine the milling head of a Zimmermann FZ 42 machining a complex curve. It doesn't move clumsily like a traditional machine; it moves like a flexible wrist. You don't hear gear clashing. You only see aluminum chips ejected like a fountain, leaving a surface that reflects the shop lights like a mirror. That is the texture of 2026 manufacturing.

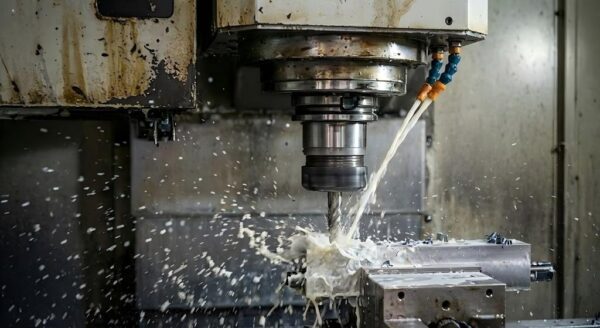

Figure 3: The core of the machine: By 2026, direct-drive 5-axis heads must be used to eliminate backlash and ensure micron-level surface finish.
5. FAQ (Real Questions from the Shop Floor)
FAQ (Real Questions from the Shop Floor)Q1: Why do you say the Haas GR series cannot do mold steel?
Tony: Physics limits it. The GR series is designed for plate processing with a lightweight gantry. When machining mold steel > HRC 45, reactive forces cause beam vibration, destroying both your tool life and surface finish.
Q2: Is Box Way (Hard Rail) still relevant for Gantries in 2026?
Tony: Yes, but strictly for roughing. For heavy cutting monsters like SNK, Box Way remains the god of damping. Read my deep dive on Box Way vs Linear Guide Technology.
Q3: What new requirements does Giga-Casting bring?
Tony: Size and Surface. Molds exceed 4 meters, and flow channel finishes must be perfect. This means the machine must run for 72+ hours without thermal drift.
Q4: Limited budget—what is the best alternative to Zimmermann?
Tony: Nicolas Correa is the balance point. Their universal heads offer 85% of the performance of top-tier machines but at 60% of the price.
Q5: How do I calculate ROI for a high-end Gantry?
Tony: Don't just look at CapEx; look at TCO. Savings in hand-polishing and spotting time usually pay back the difference in 2 years. See my guide on The Hidden ROI of Premium CNC Machines.
6. Expert Conclusion
Choosing a gantry mill isn't about buying iron; it's about buying decades of technological heritage. In 2026, a good gantry is not just a tool; it is your ticket to bidding on OEM contracts.
If your factory faces OEE issues or needs a Cycle Time Estimation for a specific part.
